Description

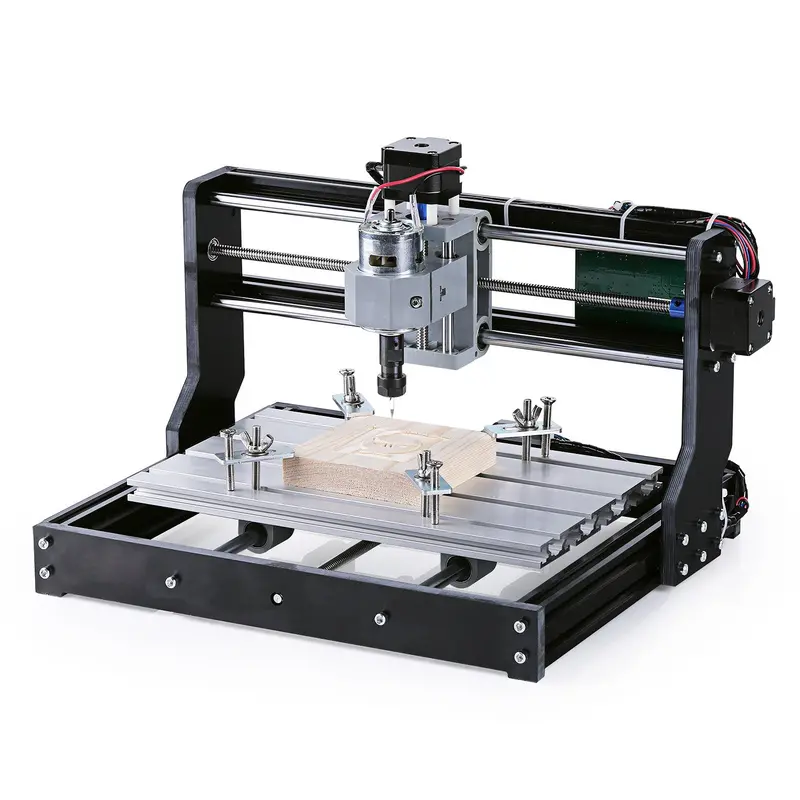

The Genmitsu CNC
Designed to deliver the best value and performance for any new Desktop CNC user, the Genmitsu is a great tool for getting started with CNC. If wood-working or DIY crafting is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models that you can design with the included CARVECO Maker design software.
Versatile
The Genmitsu is capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, and a wide range of other materials. The effective engraving depth is 1.8 inches. You will find the SainSmart Genmitsu is an excellent self-teaching tool which allows you to try your DIY ideas on an inexpensive platform without the risk of damaging expensive equipment.
Upgraded Power Adapter
UL Approved and out-of-the-box support for the drop in 20,000rpm Spindle no need to modify G-code to ramp up to full speed and also supports the Genmitsu 3018 PRO Laser.

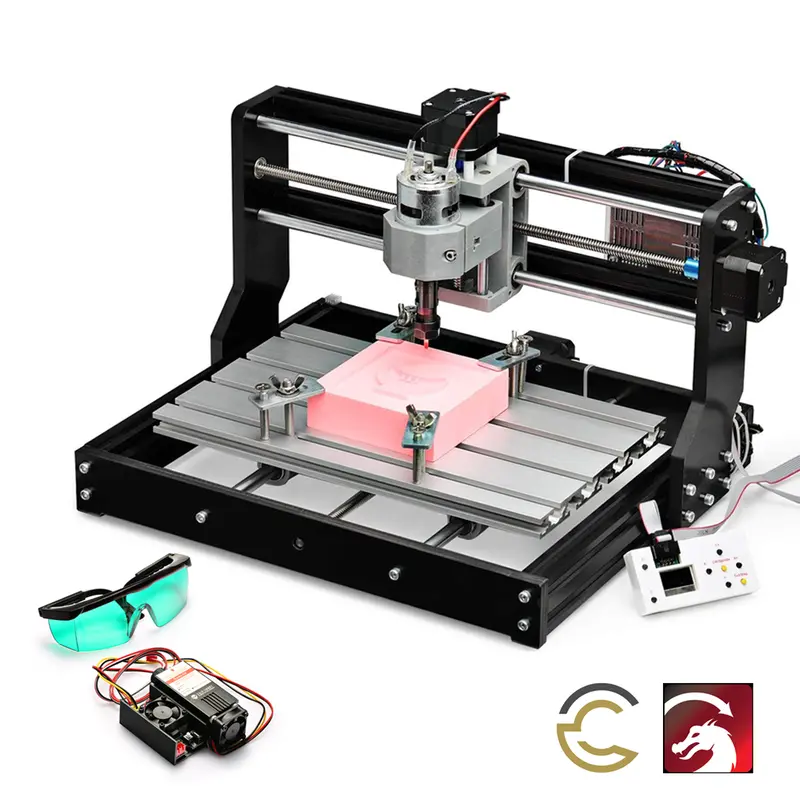

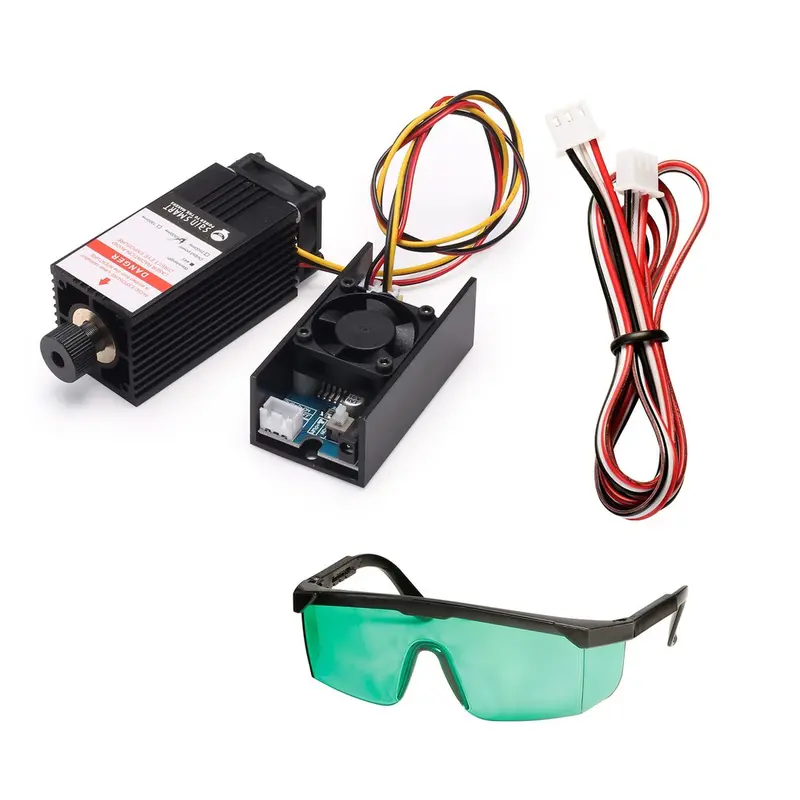

Add-on Laser, Frame Extension, and Z-Axis Module Upgrades*
If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the laser module kit to the machine as a drop-in upgrade. Or if you need an extra working room you can add the Y-Extension and expand your work area potential. If you need to work with harder materials upgrade your Z-Axis with the new all-metal carrier with support for larger 300w spindles..(Laser Module)( Extension Kit ) ( Z-Axis Spindle Carrier*)

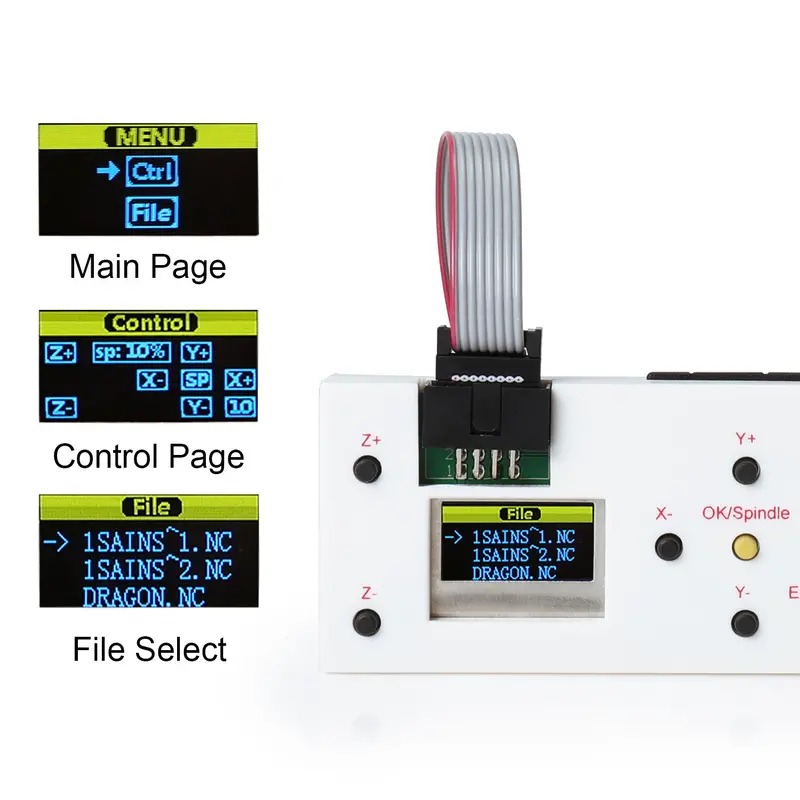

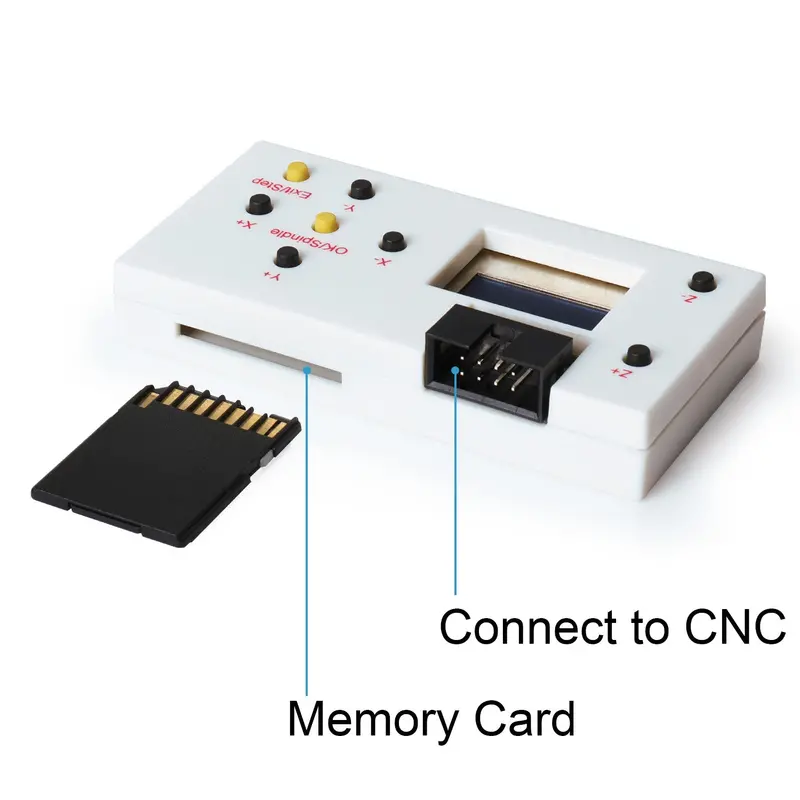

Offline Control
With SainSmart offline controller module, you can control the CNC router without connecting to the computer. The CNC router can be placed wherever you want, such as garage and workshop.

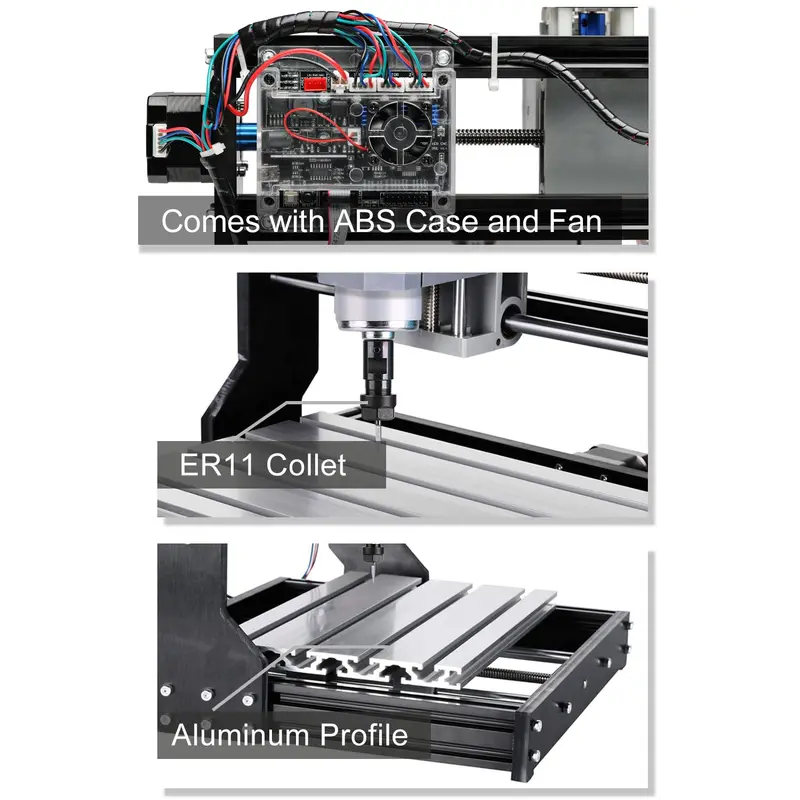

Latest V2 CNC Controller
More reliable and safer to use. With built-in fault protection and improved driver performance, you can count on your Genmitsu 3018-PRO to last for many projects to come.
Open Source
It’s built on Arduino and Grbl (both open source) support, tutorials, additional training, and new ideas to try are plentiful and easy to find elsewhere online.
Description
Designed to deliver the best value and performance for any new Desktop CNC user. The Genmitsu 3018-PRO is a great tool for getting started with CNC learning. If wood-working or DIY crafting is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models that you can design with the included CARVECO Maker design software. which you are coding and designing.
Curious about CNC? The 3018-PRO is the perfect starter with the performance you need to work with REAL materials and get creating with Industry-leading CARVECO Maker software right out of the box and confidence that you are covered with Sainsmart’s excellent Customer service and Warranty.
Genmitsu CNC Router 3018-PRO Review | Blue Laser Module Review | Blue Laser Module
SPECIFICATIONS
- Effective Engraving Area: 300 x 180 x 45 mm(11.8 x 7.1 x 1.8”)
- Frame Size: 400 x 330 x 240 mm(15.7 x 13.0 x 9.4″)
- Frame Material: Aluminum
- Axis Bracket Material: PF
- Z-Axis Component Material: Nylon
- Spindle: 775 motor, 12V, 3000 RPM; 24V, 7000 RPM; 36V, 9000 RPM
- Rated Power: 60W; Maximum Power: 120W
- Step Motor: 1.3 A, 12V, 0.25 Nm torque (2.2 in lb)
- Drill Bits: Tip 0.1 mm, 20 degrees, Diameter 3.175 mm
- Supported OS: Windows XP, Windows 7, Windows 8, Windows 10, Linux, Mac OS
- Software: Grbl control(Candle)
- Power Supply: 24V/4.75A
TIPS

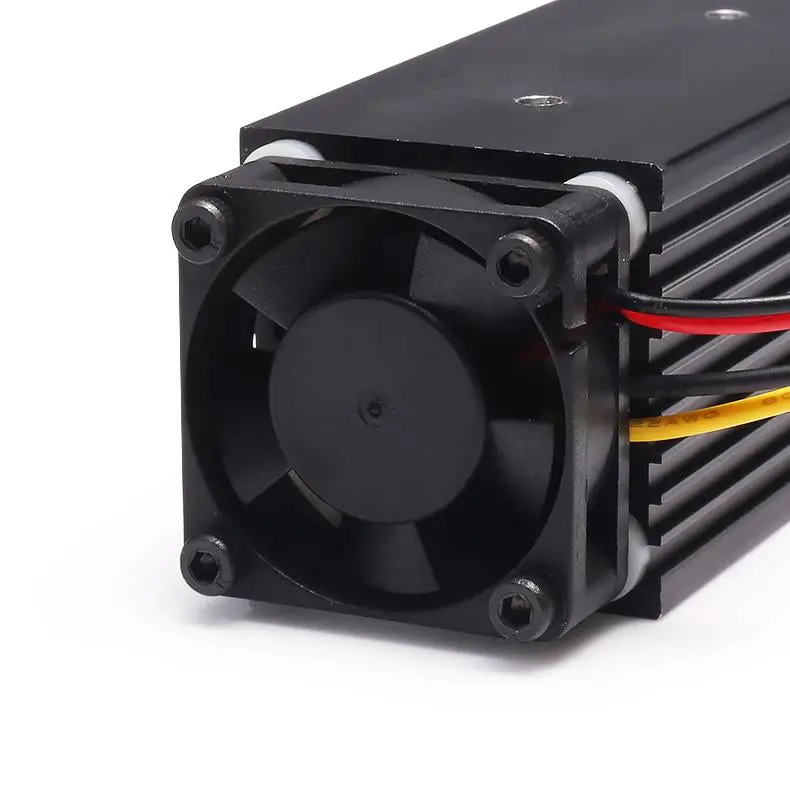

- Laser engraving is possible by replacing the spindle with a laser head (not provided). Click here to buy a laser head.

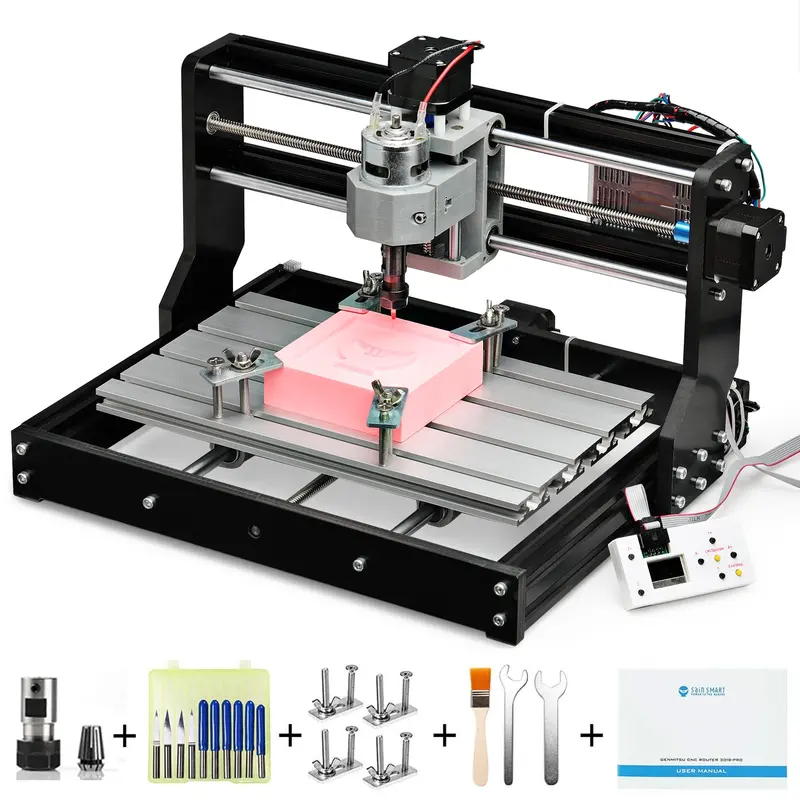

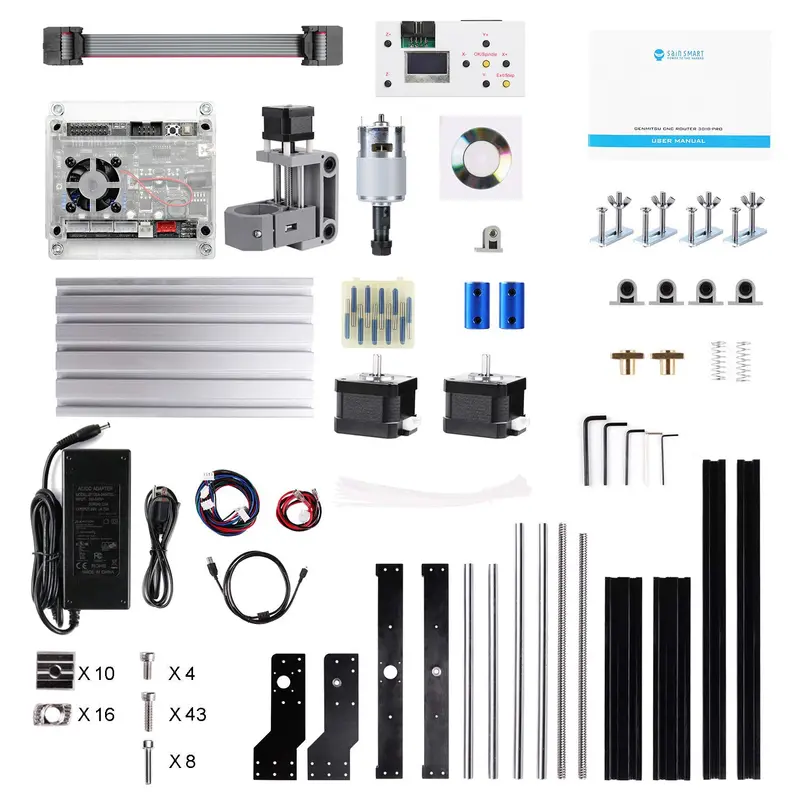

WHAT’S IN THE PACKAGE
- 1x 3018-PRO DIY Router Kit
- 1x Extension Rod with ER11 Collet (3.175mm)
- 4x Plate Clamps
- 10x CNC Router Bits (Cutting Angle: 20 Degree; Shank Diameter: 3.175mm; Tip Diameter: 0.1mm)
- 1x English Manual
- 1x Offline Controller
 |
 |
 |
 |
 |
|
| Genmitsu | 1810-PRO | 3018-PRO | 3018-PROVer | 3018-PROVer Mach3 | 3018-MX3 |
| Assembly Time | 2 hours | 2 hours | 30 minutes | 30 minutes | 2 hours |
| Working Area | 180x100x45mm | 300x180x45mm | 300x180x45mm | 300x180x45mm | 300x180x45mm |
| Control Software | GrblControl(Candle) | GrblControl(Candle) | GrblControl(Candle) | Mach3/DrufelCNC | Mach3/DrufelCNC |
| Driver Chip | 4988ET | 4988ET | TB67S109 | TB67S109 | TB67S109 |
| Home and Limit switches | x | x | ✓ | ✓ | ✓ |
| Emergency-Stop | x | x | ✓ | ✓ | x |
| Z-Probe | x | x | ✓ | ✓ | ✓ |
| Acrylic Baffles | x | x | ✓ | ✓ | ✓ |
| Comes with Offline Controller? | ✓ | ✓ | ✓ | x | x |
| Switchable to Laser Module? | ✓ | ✓ | ✓ | x | ✓ |
