6060 XY-Axis Extension Kit – Open-Box Upgrade for 4040-PRO CNC Frames, Extending Working Area to 600 x 600 mm

Description

Extension Kit Shopping Guide

For X-Axis

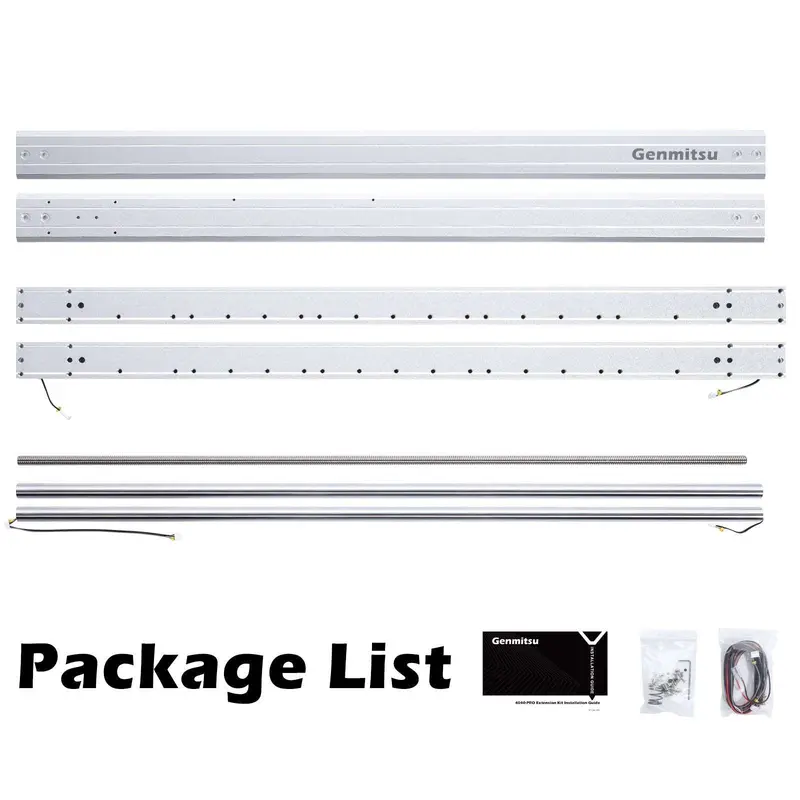

What is in the box

• Extended Front Plate
• Extended Rear Plate
• X-axis Extended Front Guard
• X-axis Extended Rear Guard
• Polished Rod (2)
• L755mm Lead Screw
• Z-axis Extension Motor Cable
• Y-axis Extension Limit Cable
• Spindle Extension Cable
• Customized Spring
• M3x6mm Round Head Phillips Screw (10)
• M3x10mm Round Head Phillips Screw (3)
• M3x4mm Flat Head Phillips Screw (5)
• User Manual

Extend X-Axis with MDF Spoilboard

1x 6040 X-Axis Extension Kit (SKU: 101-63-40P-XE60) &
1x 2040 MDF Spoilboard (SKU: 101-63-40P-X64MDF)

Extend X-Axis with Alumium MDF Hybrid Spoilboard

1x X-Axis Extension Kit (SKU:101-63-40P-XE60)
1x 4040 Hybrid Spoilboard (SKU: 101-63-R40P-HSP4040)
1x 2040 Hybrid Spoilboard (SKU: 101-63-40P-X64HSP)

---

For Y-Axis

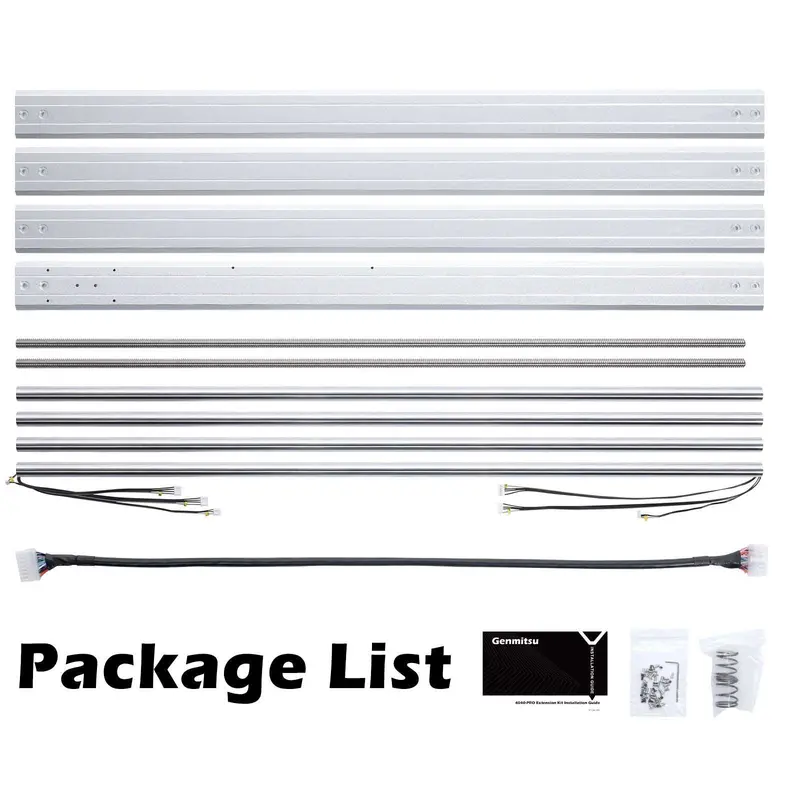

What is in the box

• Extended Guard with Control Box (YL Outside)
• Extended Y-axis Lead Screw Guard (3)
• Polished Rod (4)
• L755mm Lead Screw(2)
• XZ-axis Extension Cable
• Customized Spring
• M4x8mm Flat Head Hexagon Screw(17)
• M3x6mm Flat Head Phillips Screw(5)
• M3x6mm Round Head Phillips Screw(9)
• 2.5mm Allen Wrench
• M4x4mm Hexagon Socket Set Screw(3)
• User Manual

Extend Y-Axis with MDF Spoilboard

1x Y-Extension Kit (SKU:101-63-40P-YE60)
2x 2060 MDF Spoilboard (101-63-40P-Y46MDF)

Extend Y-Axis with Alumium MDF Hybrid Spoilboard

1x Y-Extension Kit (SKU:101-63-40P-YE60)
1x 4060 Hybrid Spoilboard (SKU: 101-63-40P-Y46HSP)

---

For X&Y-Axis

Extend X-Axis and Y-Axis with MDF Spoilboard

1x X-Axis Extension Kit (SKU: 101-63-40P-XE60)
1x Y-Axis Extension Kit (SKU: 101-63-40P-YE60)
3x 2060 MDF Spoilboard (SKU:101-63-40P-Y46MDF)

Extend X & Y-Axis with Alumium MDF Hybrid Spoilboard

1x X-Extension Kit (SKU: 101-63-40P-XE60)
1x Y-Extension Kit (SKU: 101-63-40P-YE60)
1x 4060 Hybrid Spoilboard (SKU: 101-63-40P-Y46HSP)
1x 2060 Hybrid Spoilboard (SKU: 101-63-40P-66HSP)

---
