4030 Threaded Insert Spoilboard – MDF Base with Embedded T-Nuts for PROVerXL 4030

Description

What’s in the package:

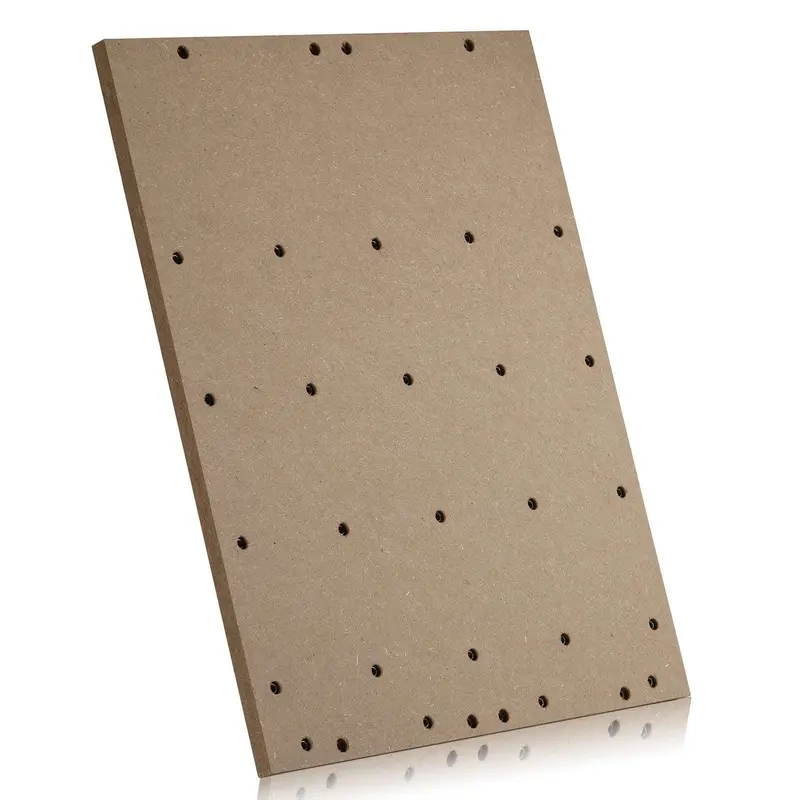

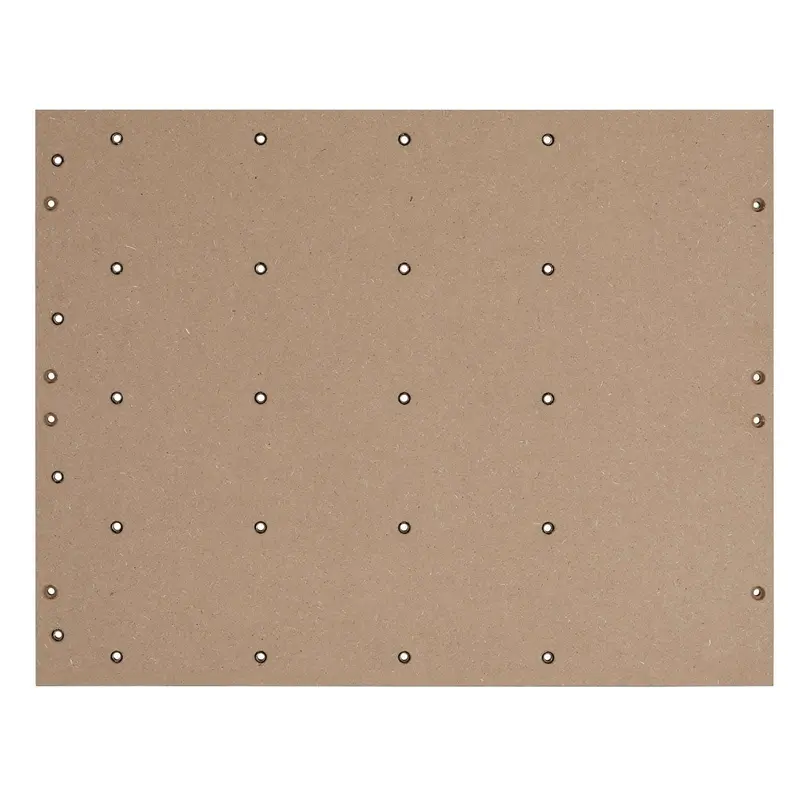

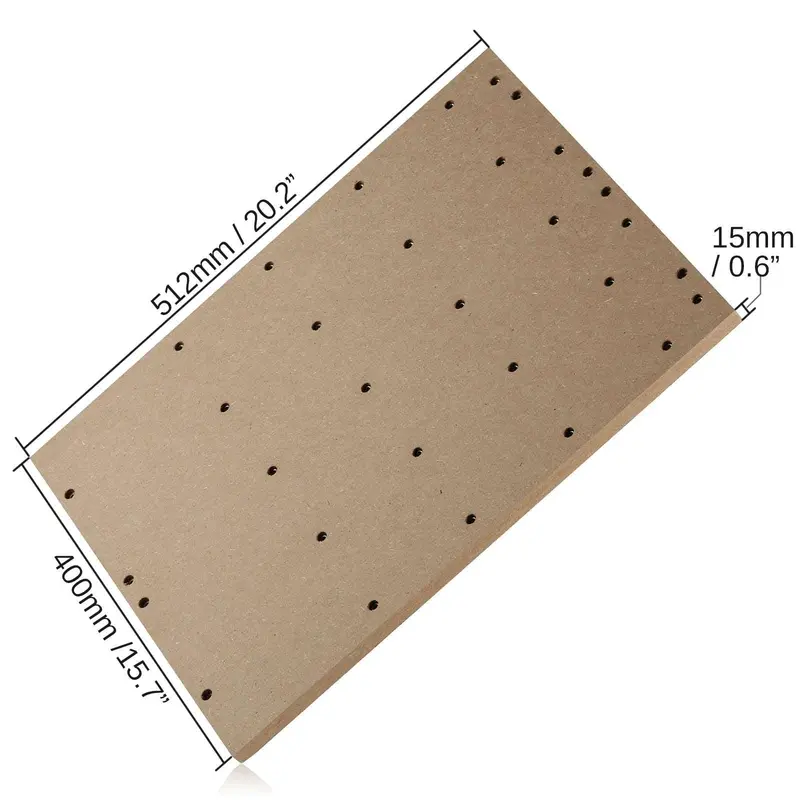

1 x Genmitsu Threaded Inserts MDF Spoilboard for PROVerXL 4030

Installation Guide

1. Loosen the screws on the original spoilboard and each dust baffle; remove the original spoilboard.

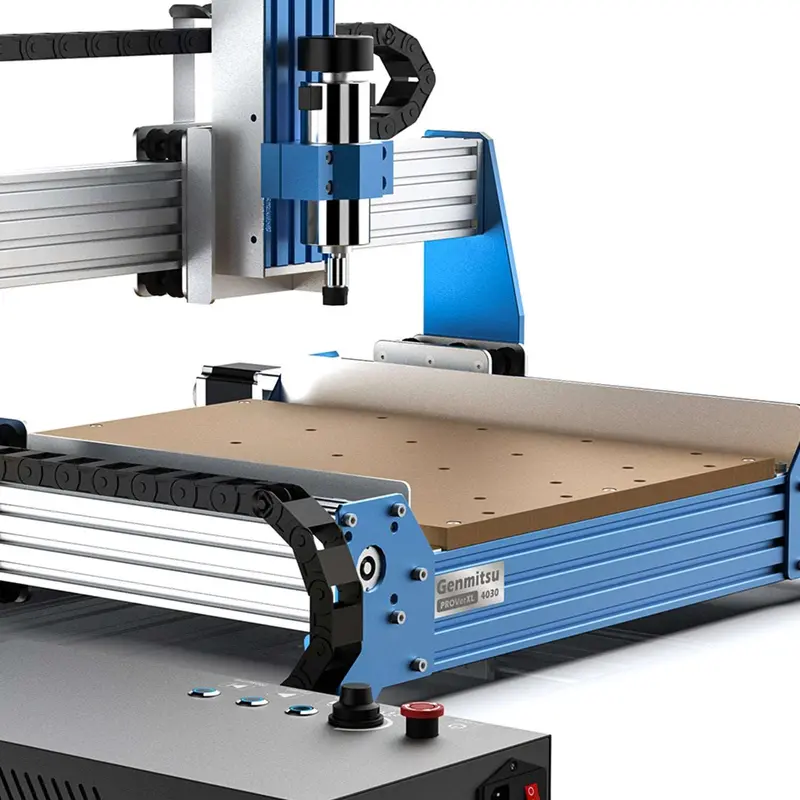

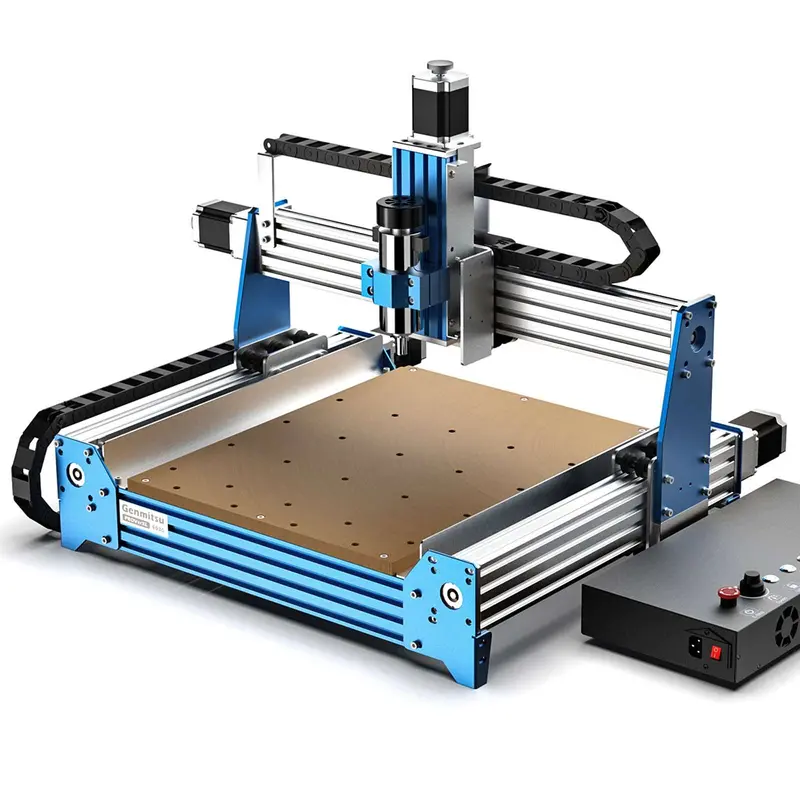

2. Position the new MDF spoilboard on the PROVerXL Base and align each Dust Baffle to the side of the spoilboard. Align with the screw holes and tighten down with the M5 x 16mm screws.
3. Align the MDF spoilboard with the screw holes at the front and back of the machine. Be sure the board is right side up (Threaded Inserts should be towards the bottom. If you install it in reverse the mounting screws will protrude from the top of the spoilboard). Tighten with M5 x 20mm screws.
