3018-PROVer Spindle Mount Bracket – Ø52mm Aluminum Holder for Router Upgrades

Description

Better Experience:

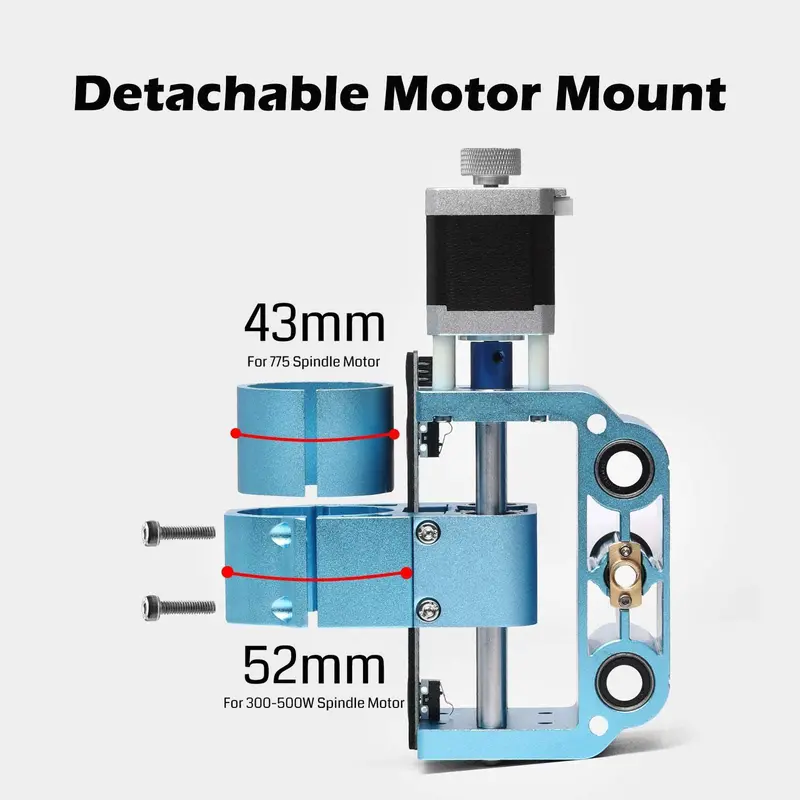

Feel free to upgrade your CNC with a more powerful 300-500W motor, it can hold the stepper motor firmly to increase precision and reduce noise.

Assembly Guide Included:

Limit switches and linear bearings are pre-installed. Every step for exchanging the spindle holder is written in the assembly guide in detail.

Application:

Model	Z-axis travel	Compatibility	Upgrade Mount
Ver1 SKU:101-63-SPH52	40mm	3018-PROVer, 3018-PROVer Mach3

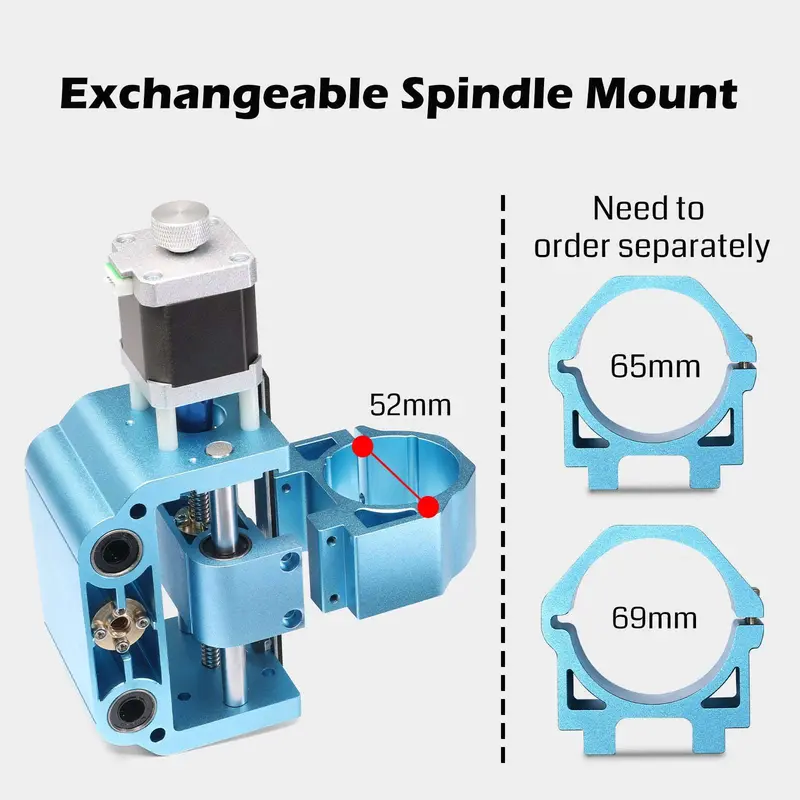

Ver2 SKU:101-63-SPHV2-PV	56mm	3018-PROVer, 3018-PROVer V2, 3018-PROVer Mach3	φ65-69mm Mount

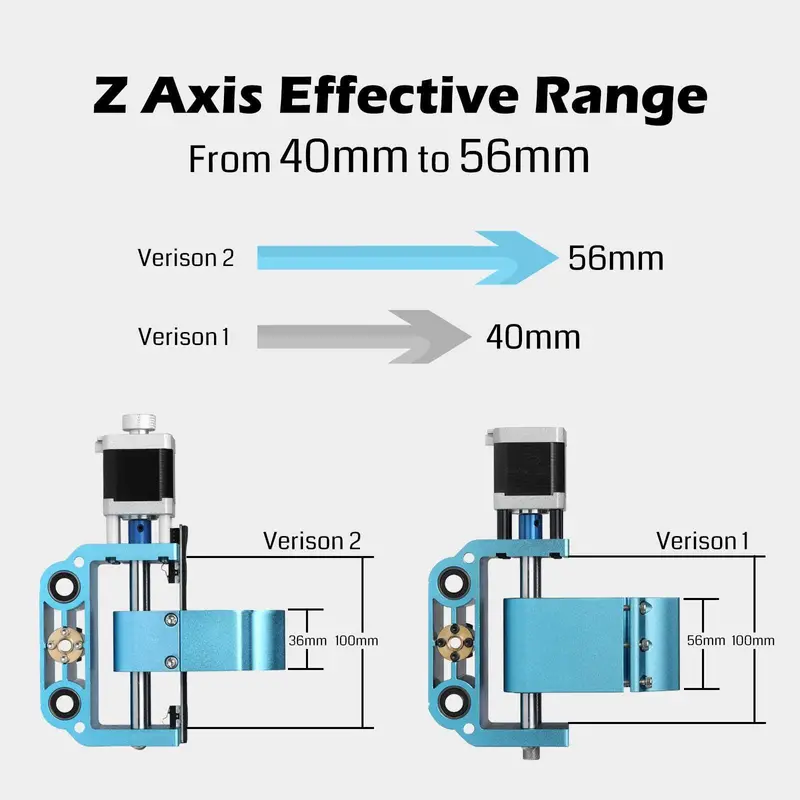

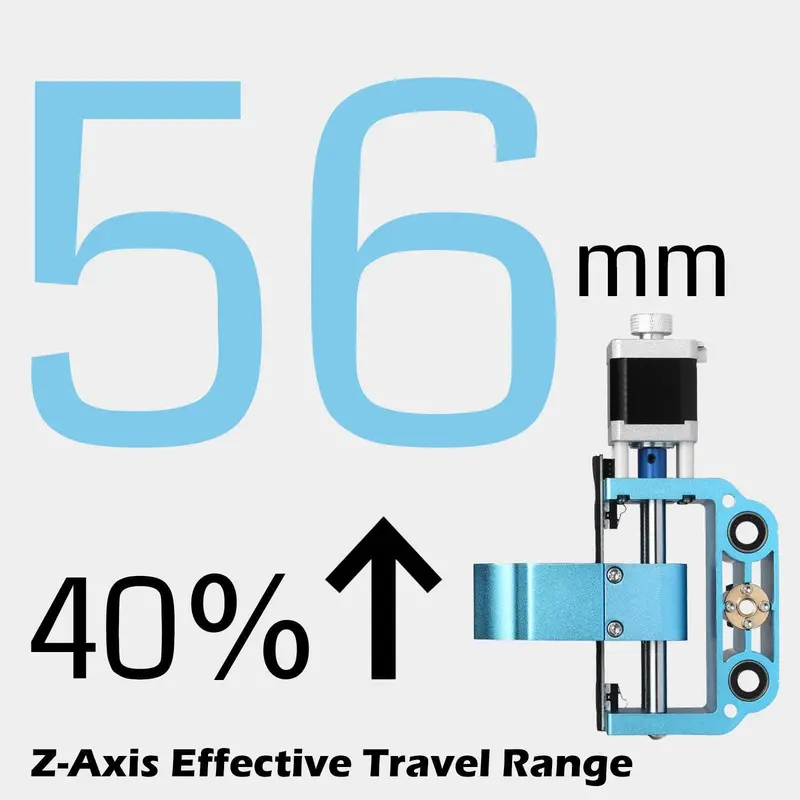

Compared with the V1 version, the V2 version has reduced the height of the spindle mount so that the effective range of the Z-Axis is increased from 40mm to 56mm.

If you would like to add a laser to this spindle holder, you need to add an extra motor mount. You can download the 3D model to print one.

Specification:

Material: Aluminum

Copper nut: Pitch 2mm, lead 4mm

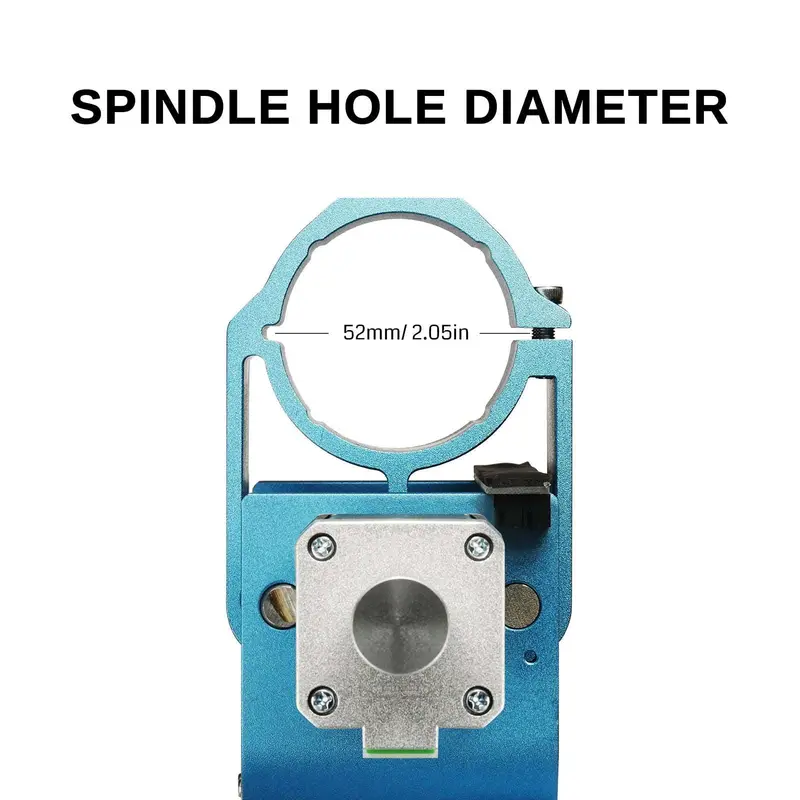

Spindle hole diameter: 52mm

Stepper motor: NEMA17 1.7A stepper motor

Limit switch: Normally open interface, terminal block XH2.54-3P

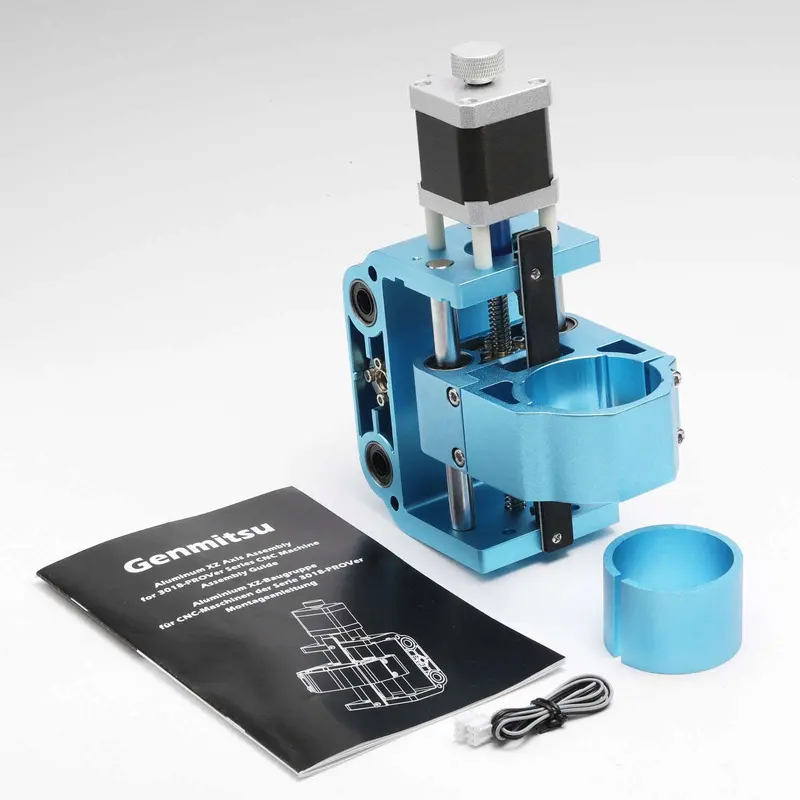

What’s Included:

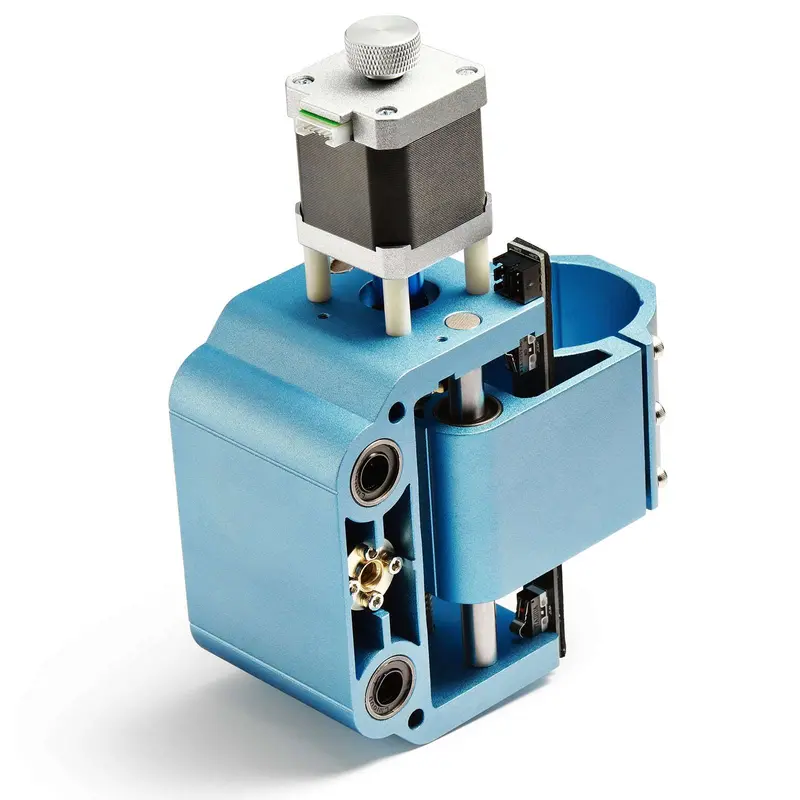

1* CNC Aluminum Z-Axis Sliding Table (Fully Assembled and Includes Bearings)

1* Removeable Limit Switches

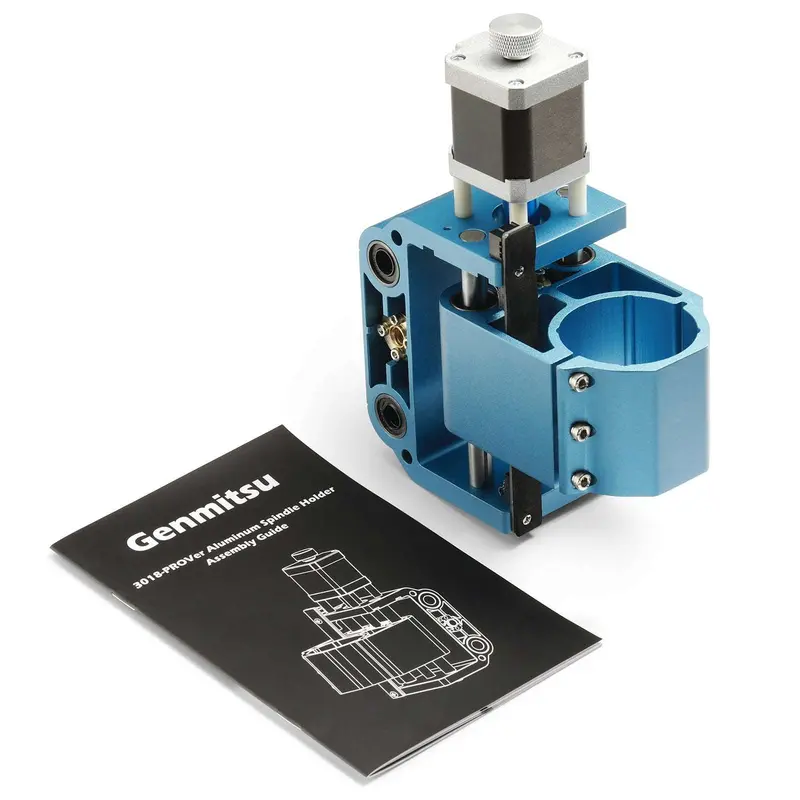

1* Assembly Guide V2, Assembly Guide V1
