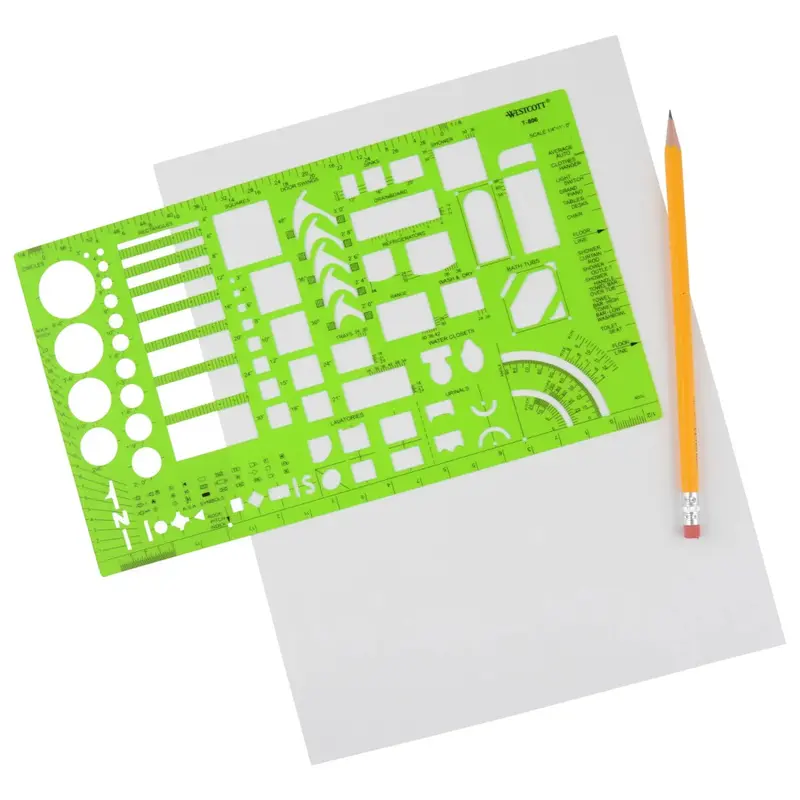

Westcott Technical Architectural Template – Precision Layout Tool (T-806)

Description

• Includes fixtures and appliances, ASA symbols roof pitch, gauge, protractor feature with slope, rise and run
• Scale ¼” equals 1 foot
• Scaled in ⅛”, ¼”, ½” and 1″ to the foot
• Translucent color allowing for viewing through to the page
• Designed for architects, engineers and builders
