Signal Generator Learning Kit — Plug-and-Play Circuit Assembly with Full Schematic Diagram

Description

• The Signal Generator kit output sine wave, triangle, and square waveforms. The signal frequency is about 1 kHz.

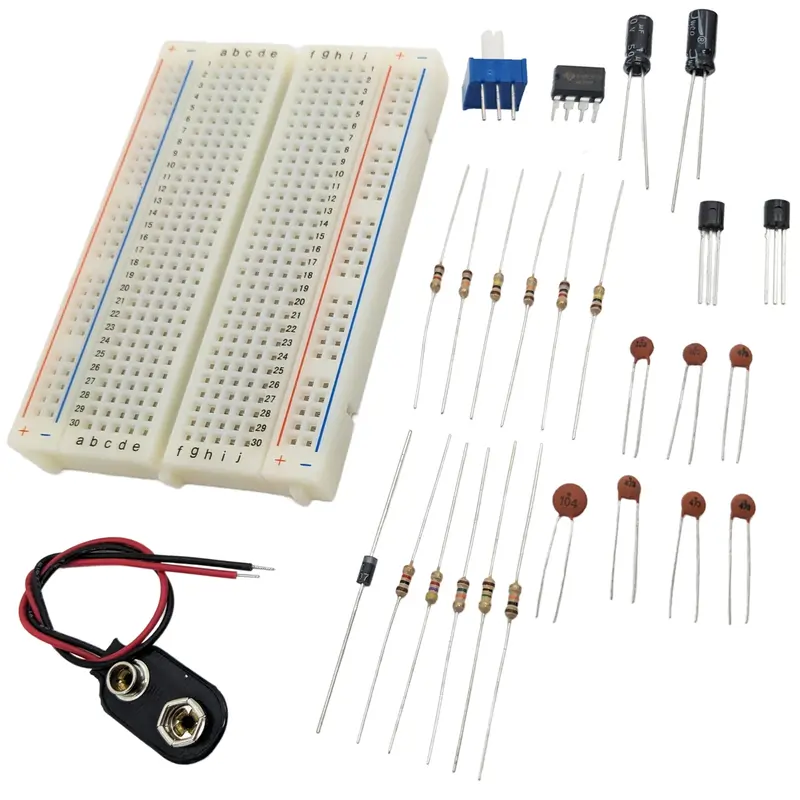

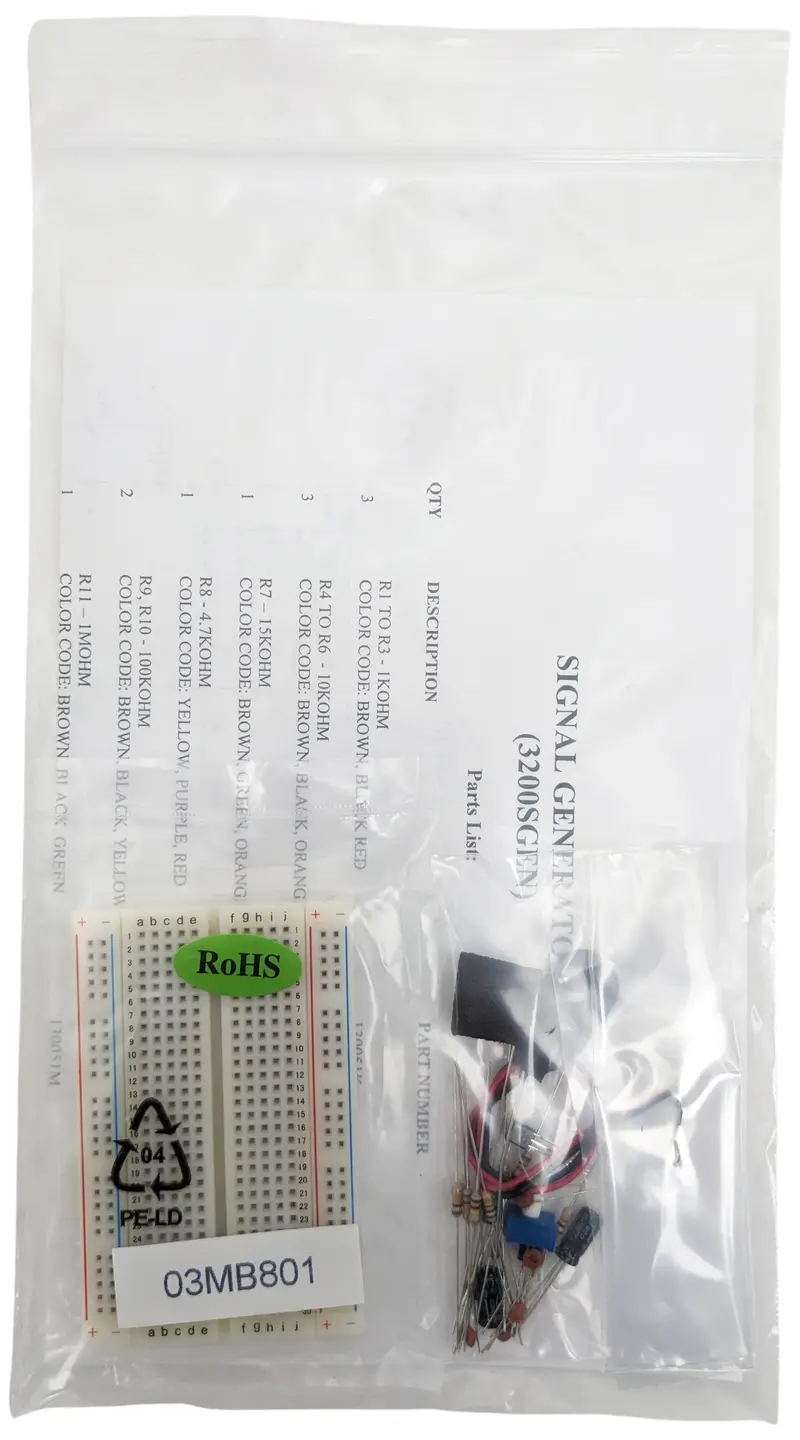

• Safe! Fun! Educational! Complete with solderless breadboard, components, schematic, and breadboard layout.
• Note: Step by step instructions are not included – use the included parts list to identify the components and assemble according to the included circuit diagram.
• Jumper wire not included (breadboard accepts 21 to 26 AWG wire)
• Requires a 9V battery for operation (not included)
