RSR 60MHz Test Lead Kit – BNC-to-Alligator, BNC-to-IC Hook & Multi-Function Probes

Description

Kit Includes:

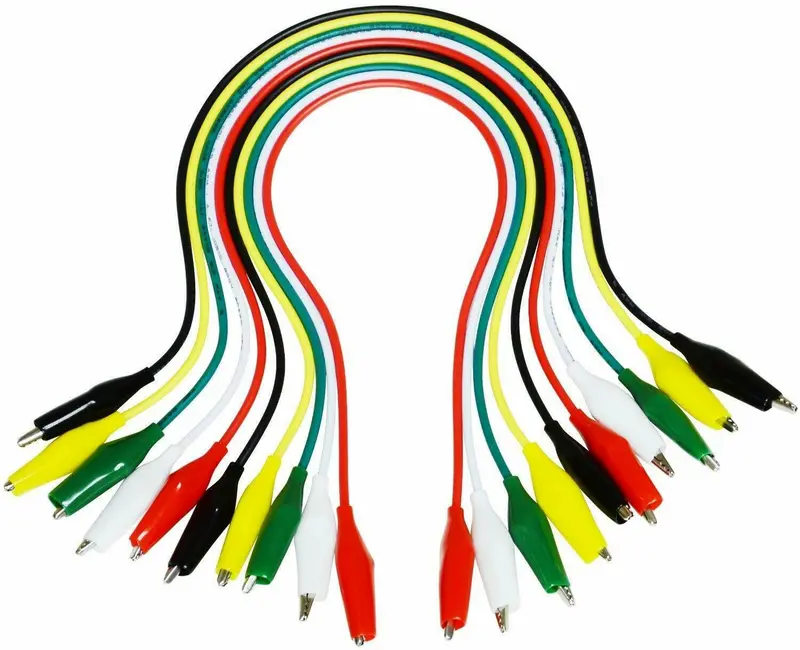

• 05ALS1 – Alligator Lead Set (Set of 10)
• 05ALS3 – Banana to Alligator Lead Set
• 05ALS5 – Banana to Hook Lead Set (one each of red and black)

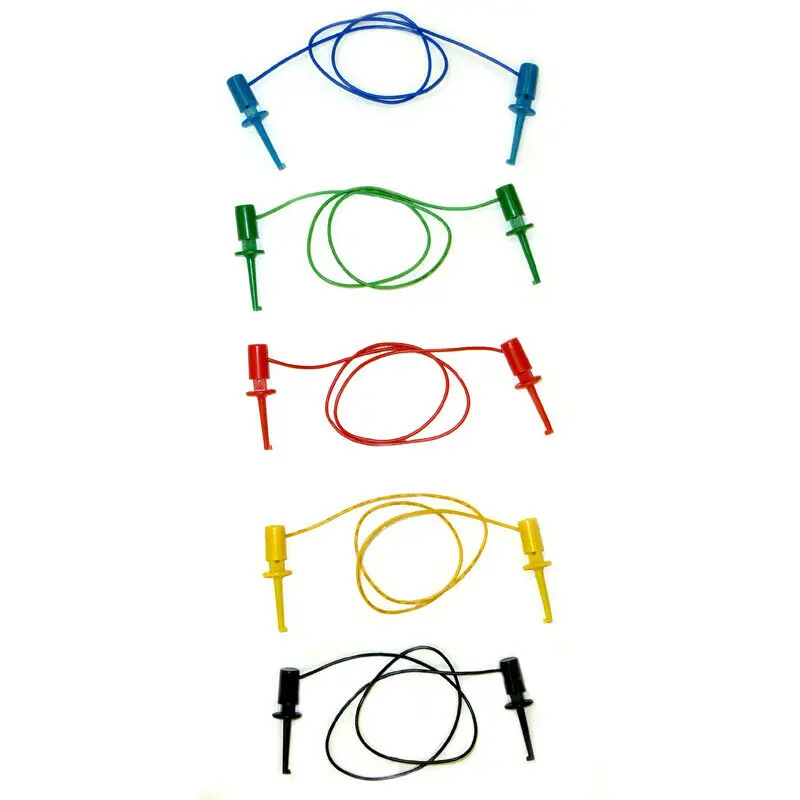

• 05ALS7 – IC Test Lead Mini Hook

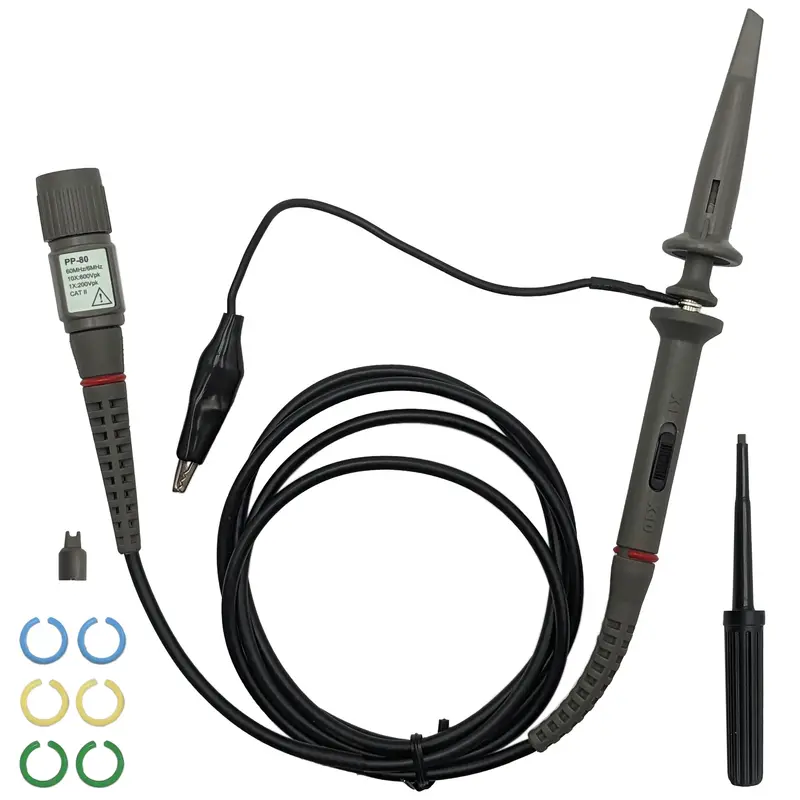

• 05SPAK110 – Scope Probe 60MHz Switchable

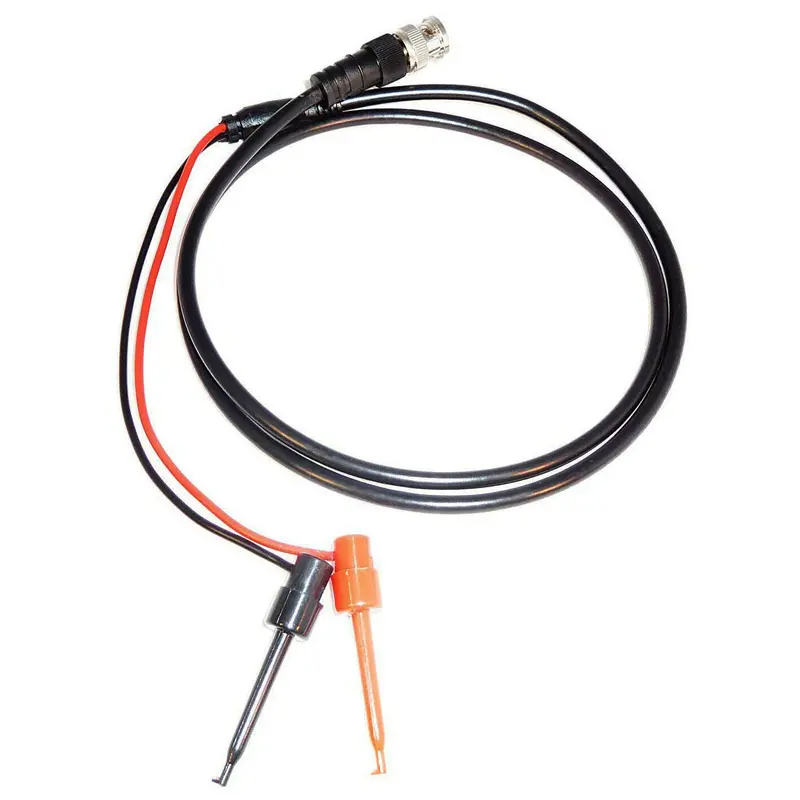

• 05SPAT1 – BNC to IC Test Hook 36″ long coax & 8″ long connecting (Red & Blk. ) wires

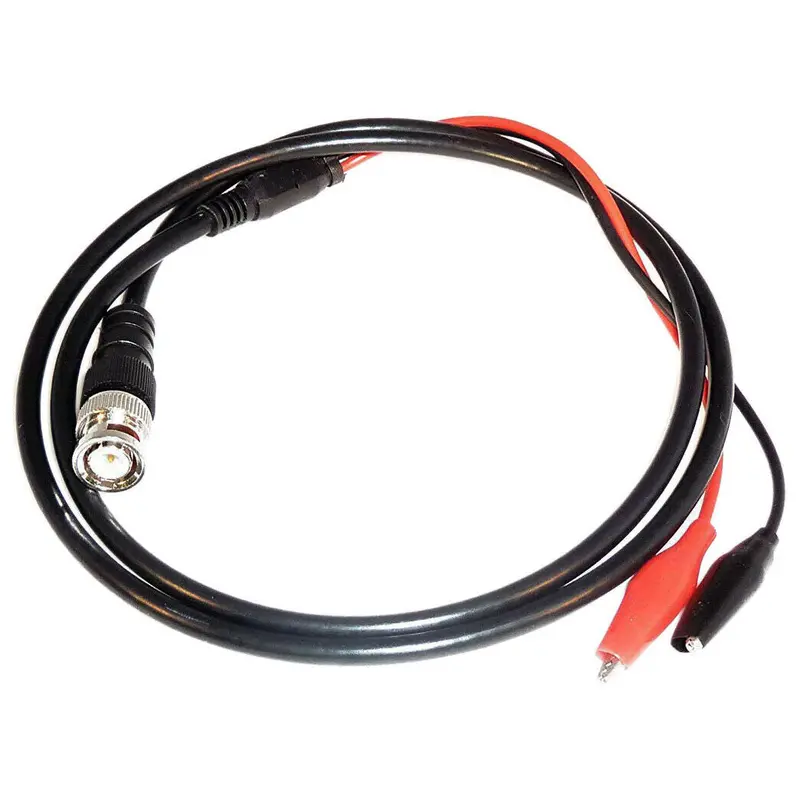

• 05SPAT2 – BNC to Alligators – 36″ long coax & 8″ long connecting (Red & Blk.) wires

Oscilloscope Probe Specifications:

• Input Capacity:
• X1: 85pF-115pF
• X10: 18.5pF-22.5pF
• Oscilloscope Input Capacity: 15pF-40pF
• Input Resistance:
  • X1: 1MΩ ±2%
  • X10: 10MΩ ±2%
• Bandwidth:
  • X1: DC 6MHz
  • X10: DC 60MHz
• Max Input Voltage:
  • X1: <200V DC +Peak AC
  • X10: <600V DC +Peak AC
