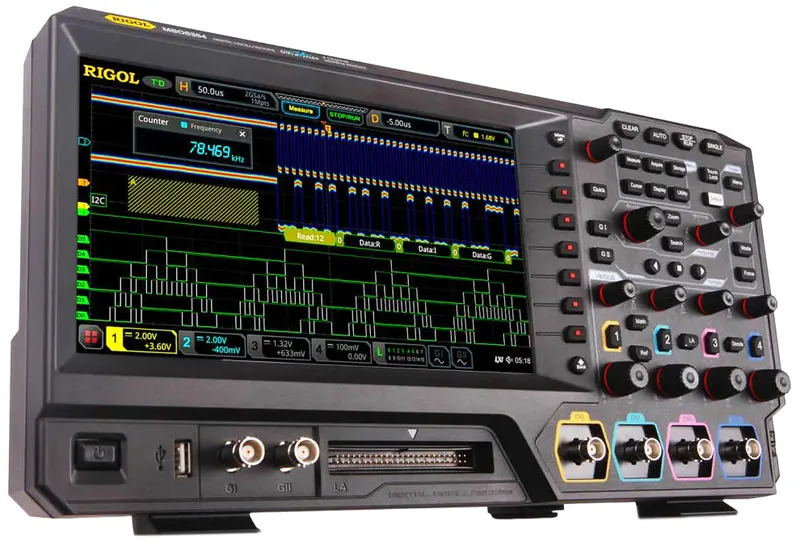

Description
- Analog bandwidth: 70 MHz
- 4 analog channels, 16 digital channels can be activated with purchase of the PLA2216 logic probe
- Up to 200 Mpts memory depth (option)
- Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyzer, a spectrum analyzer, an Arbitrary Waveform Generator, a digital voltmeter, a frequency counter, a totalizer, and a protocol analyzer
- Automatic measurement of 41 waveform parameters; full-memory hardware measurement function using Precision Measurement Mode
- A variety of serial protocol triggers and decode capabilities including I2C, SPI, RS232, I2S, CAN, LIN, and more
- Up to 450,000 frames of hardware real-time waveform recording and playback

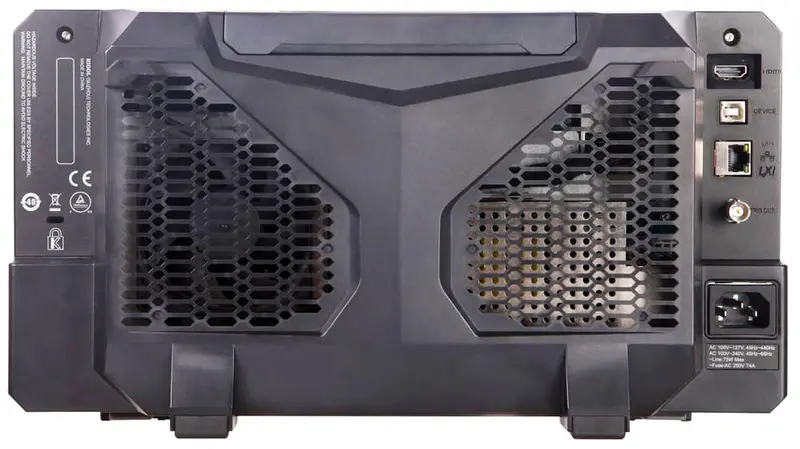

- Multiple interfaces available: USB HOST & DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB (option)
- 9-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
- Bode plot for frequency response test (with Generator option)
- High waveform capture rate (over 500,000 wfm/s)
- Up to 8 GSa/s real-time sample rate
UItraVision Il Technology Platform Brings Excellent Specifications
- High sample rate (maximum sample rate:8 GSa/s)
- High memory depth (maximum memory depth of 200 Mpts, optional)
- High waveform capture rate (over 500,000 waveforms per second)
- Real-time waveform recording and playback functions (up to 450,000 frames)
- Full memory hardware measurement technology
- Full digital trigger technology
- Built-in advanced power analysis toolkit (option)
- Independent event search, navigation keys, and event table
