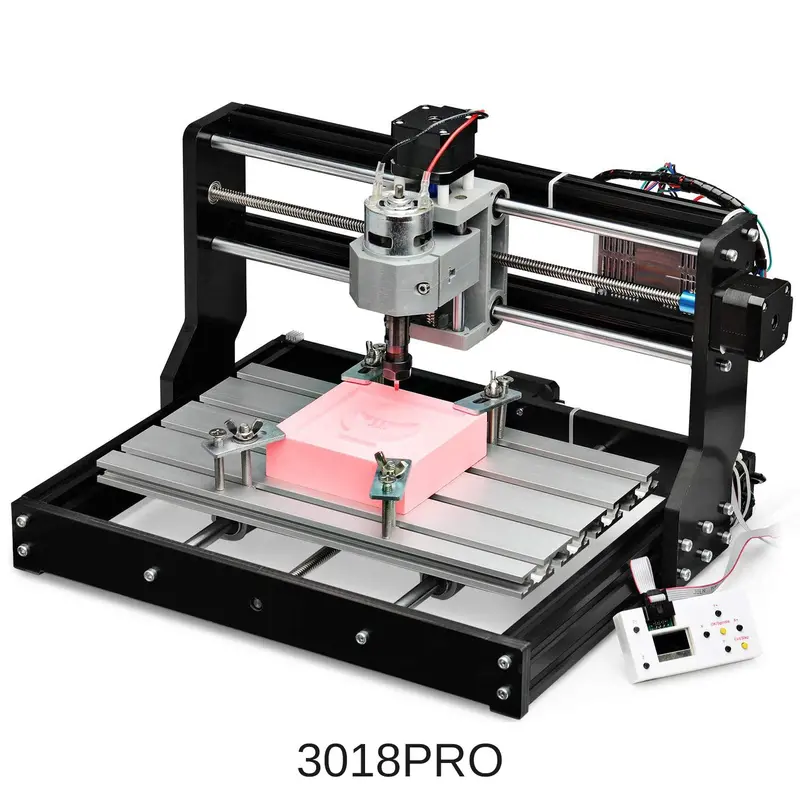

Replacement Stepper Motor for Genmitsu 3018-PRO CNC Router – Direct Compatibility

Description

Parameters:
Product name: Bipolar 42 Stepper Motor
Holding torque: 0.46 Nm / 65 oz-in
Working voltage: DC 9-42V
Rated current: 1.7A
Resistance: 2.1 ohm
Inductance: 4mH
Rotor inertia: 55 gcm² / 0.30 oz-in²
Weight: 0.28 kg

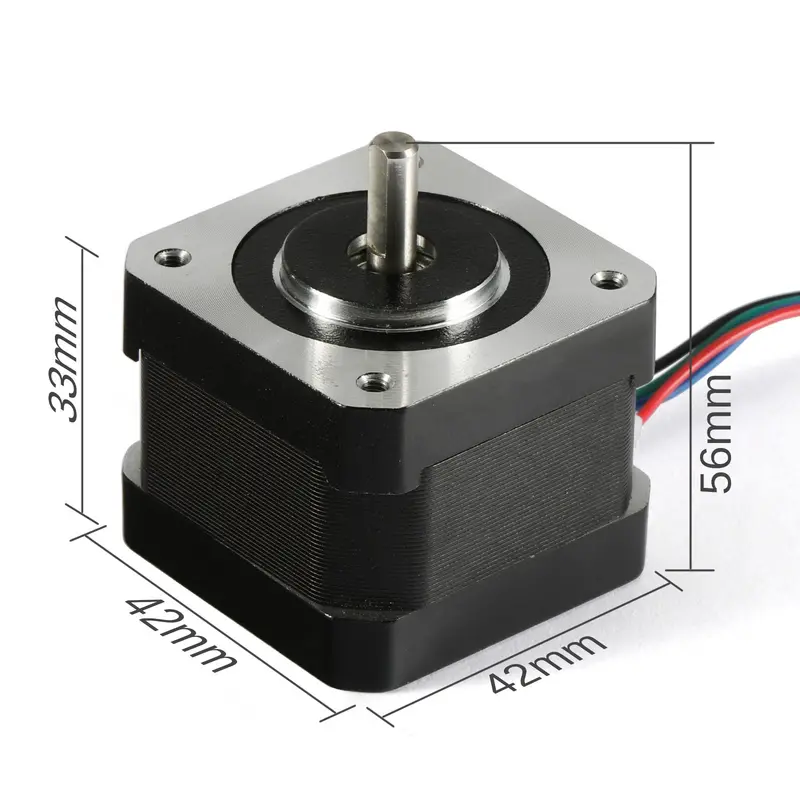

Length: 39.5 mm / 1.56 inch
Phase: 2
Step angle: 1.8°
Motor frame size: 42 x 42 mm
Warm Tips:
Please note that this motor cannot be connected directly to the power supply. It should be connected to a constant current driver; otherwise, it will damage the motor.
Ensure that the output current does not exceed the rated current of the motor (1.7A) and remains within the working voltage range of the motor (DC 9-42V).

Package includes:
1 x Stepper Motor for 3018PRO
