Momentary Normally Open Push Button – Round Red Actuator, 2-Pin Solder Lug Termination
Momentary Normally Open Push Button – Round Red Actuator, 2-Pin Solder Lug Termination
Momentary Normally Open Push Button – Round Red Actuator, 2-Pin Solder Lug Termination
Momentary Normally Open Push Button – Round Red Actuator, 2-Pin Solder Lug Termination
Momentary Normally Open Push Button – Round Red Actuator, 2-Pin Solder Lug Termination

Momentary Normally Open Push Button – Round Red Actuator, 2-Pin Solder Lug Termination

Original price was: $1.25.Current price is: $0.83.

In stock

Quantity
Category: Brand:

Description

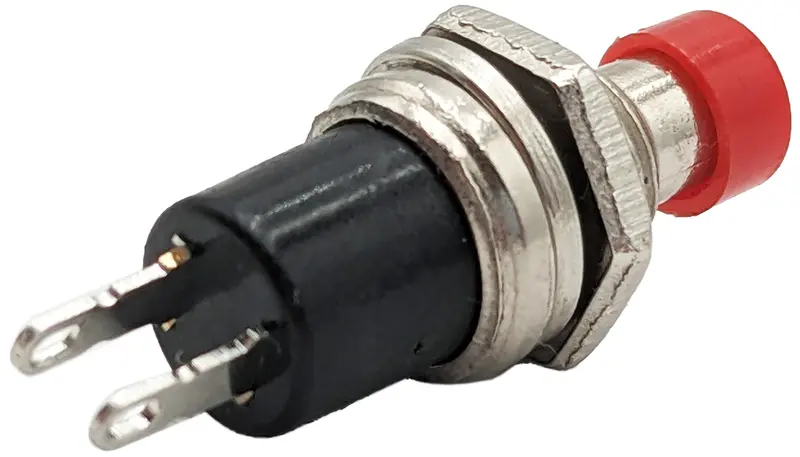

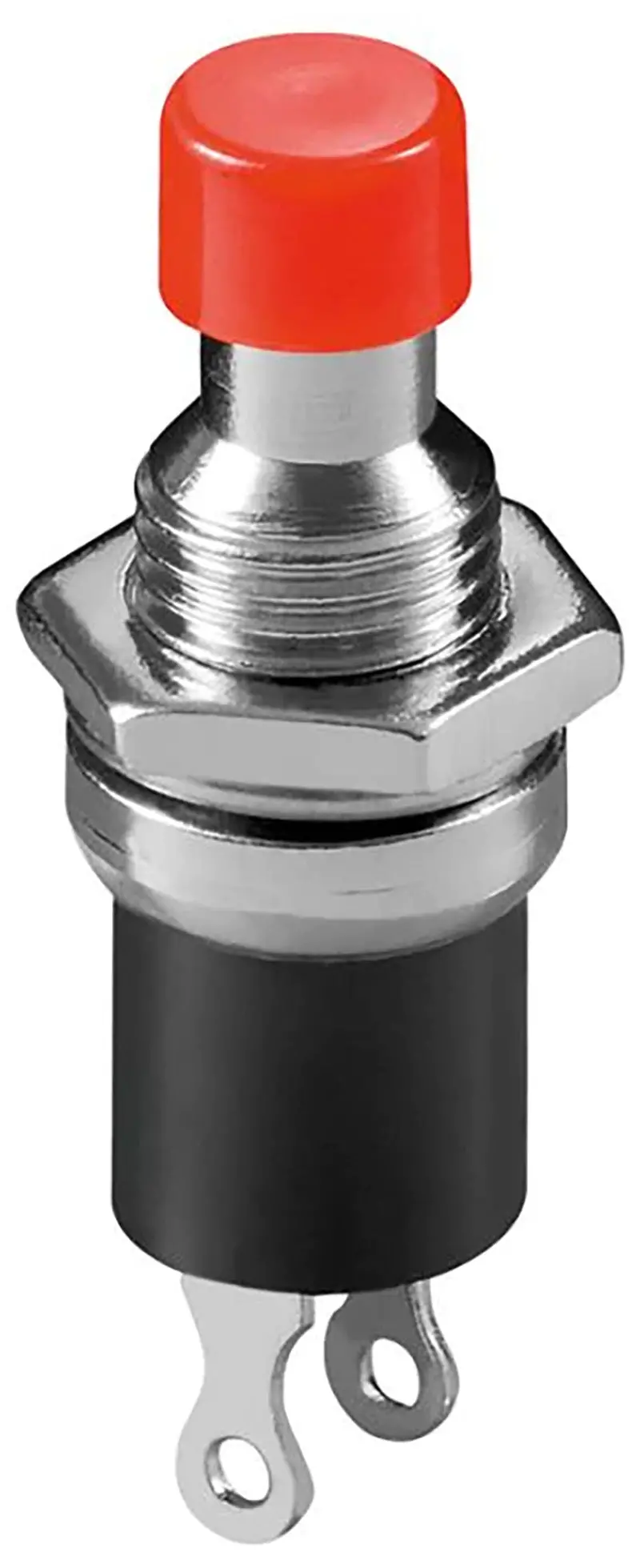

  • Momentary Switch with Round Red Button

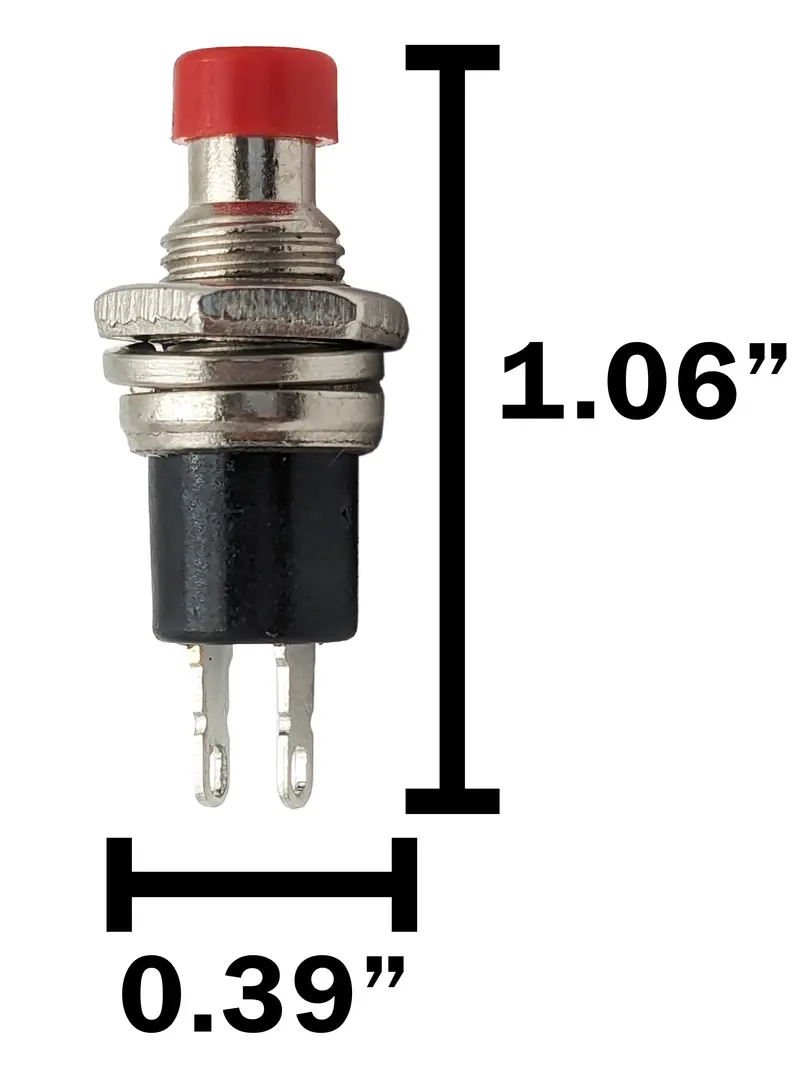

  • Overall size: 0.39″ wide, 1.06″ tall, Button diameter: 0.24″

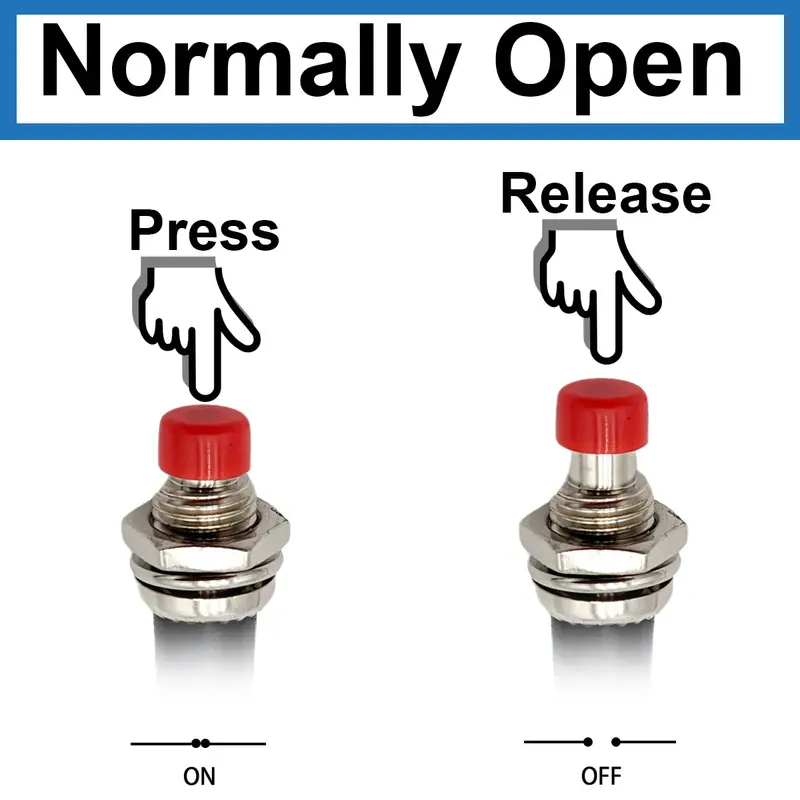

  • Normally Open
  • Number of pins: 2
  • Mounting: Panel Mount, fits 0.26″ cutout
  • Termination: Solderable Lug

Specifications:

  • Rating: 1A 125VAC
  • Contact Resistance: 30mΩ max.
  • Insulation Resistance: DC 500V 100 MΩ min.
  • Dielectric Strength: AC 1000V 1 minute
  • Electrical Life: 30,000 cycles min
  • Mechanical Life: 50,000 cycles min
  • Terminal Material: Copper alloy, silver or gold plated
