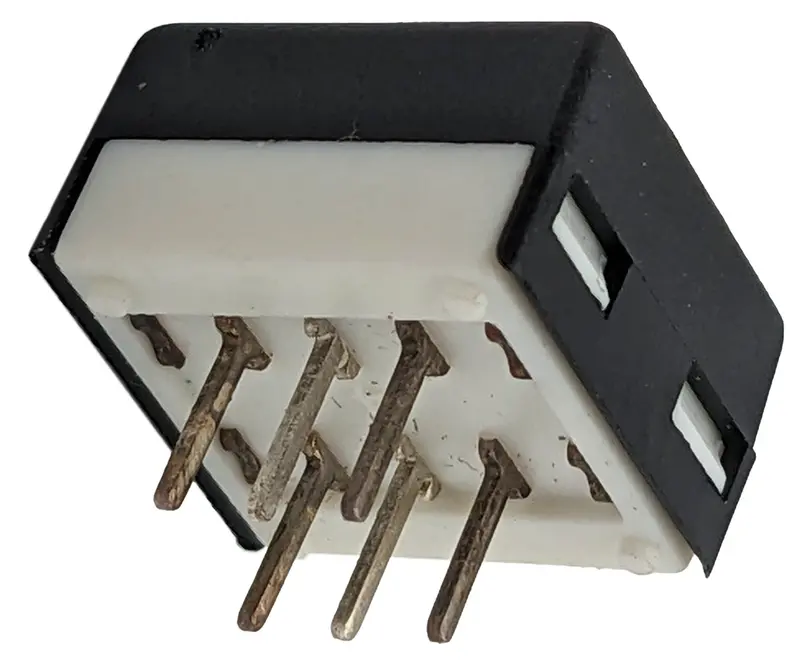

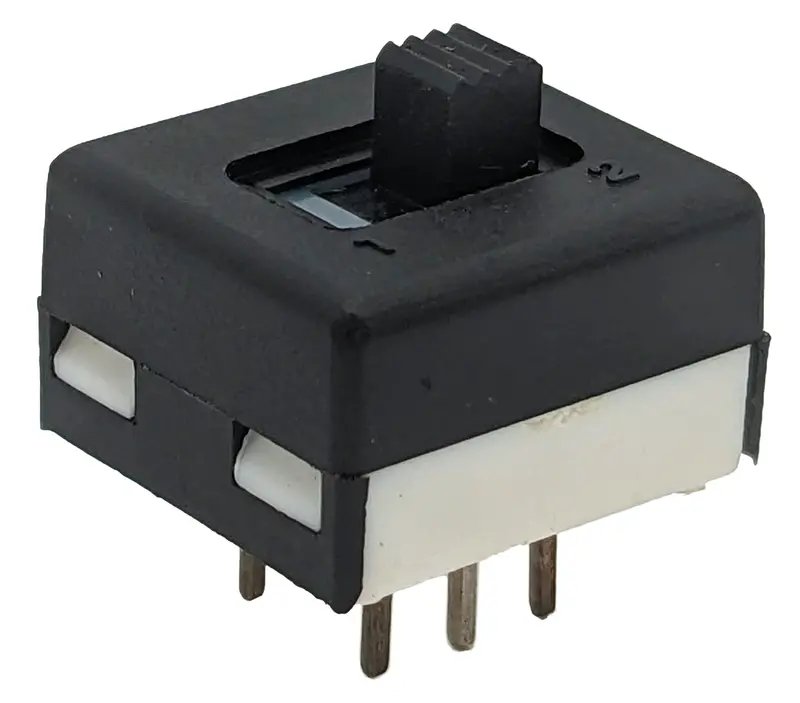

Mini DPDT Slide Switch with 0.1″ Pin Spacing – Breadboard-Friendly PC Leads

Description

• DPDT (Double Pole Double Throw) Slide Switch
• Mini size, measures 0.55″ x 0.5″ x 0.43″ (14mm x 12.7mm x 11mm)
• Pins fit most breadboards and prototyping boards (2.54mm pitch, 5.08mm row spacing)

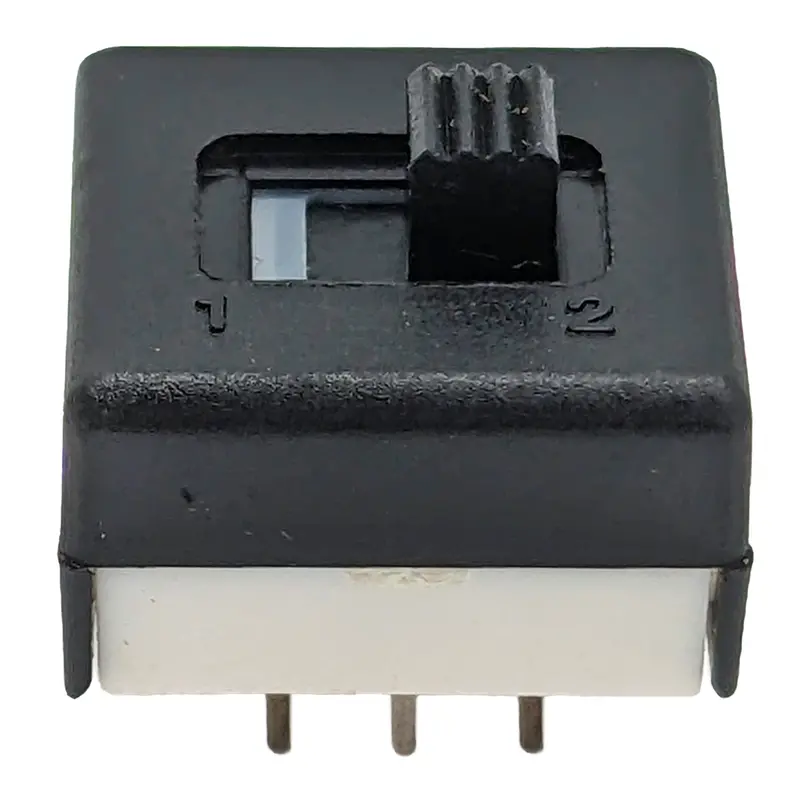

• Switch position is indicated by embossed numbers “1” and “2”
• Contact Resistance: 20 mΩ max. initial
• Insulation Resistance: 1000 MΩ min.
• Dielectric Strength: 1000 VAC/1 min.
• Operating temperature range: -25 to 85℃
