LM331 Precision Voltage-to-Frequency Converter – 8-Pin DIP

Description

Features:

• LM331 IC Precision Voltage-to-Frequency Converters
• Ensured Linearity 0.01% Maximum 1
• Improved Performance in Existing Voltage-to Frequency Conversion Applications
• Split or Single-Supply Operation
• Operates on Single 5-V Supply
• Pulse Output Compatible With All Logic Forms
• Excellent Temperature Stability: ±50 ppm/°C Maximum
• Low Power Consumption: 15 mW Typical at 5 V
• Wide Dynamic Range, 100 dB Minimum at 10-kHz Full Scale Frequency
• Wide Range of Full Scale Frequency: 1 Hz to 100 kHz
• Low-Cost

Specifications:

• Full Scale Frequency: 100 kHz
• INL – Integral Nonlinearity: +/- 0.14 % FSR
• Supply Voltage – Max: 40 V
• Supply Voltage – Min: 4 V
• Supply Type: Single
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: Through Hole

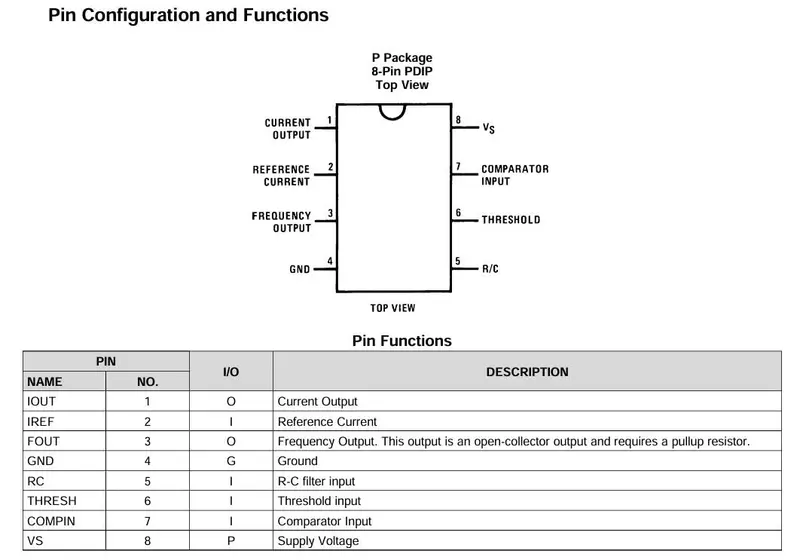

• Package / Case: PDIP-8
• Height: 3.3 mm
• Length: 9.27 mm
