LM324 Quad Operational Amplifier IC – 14-Pin DIP

Description

The LM324B and LM2902B devices are the next-generation versions of the industry-standard
operational amplifiers (op amps) LM324 and LM2902, which include four high-voltage (36V) op amps. These devices provide outstanding value for cost-sensitive applications, with features including low offset (600μV, typical), common-mode input range to ground, and high differential input voltage capability.

Features:

• B versions are drop-in replacements for all versions of LM224, LM324, and LM2902
• Improved specifications of B version
  • – Supply range: 3V to 36V (B, BA versions)
  • – Low input offset voltage: ±2mV (BA version) /
    3mV (B version)
  • – ESD rating: 2kV (HBM), 1.5kV (CDM)
  • – EMI rejection: integrated RF and EMI filter
  • – Low input bias current: 50nA maximum (across –40°C to 125°C)
• Common-mode input voltage range includes V–
• Input voltage differential can be driven up to supply
  voltage

Specifications:

• Number of Circuits: 4
• Gain Bandwidth Product: 1.2 MHz
• Current – Input Bias: 45 nA
• Voltage – Input Offset: 2 mV
• Current – Supply: 1.5mA
• Current – Output / Channel: 40 mA
• Voltage – Supply Span (Min): 3 V
• Voltage – Supply Span (Max): 32 V
• Operating Temperature: 0°C ~ 70°C (TJ)
• Mounting Type: Through Hole

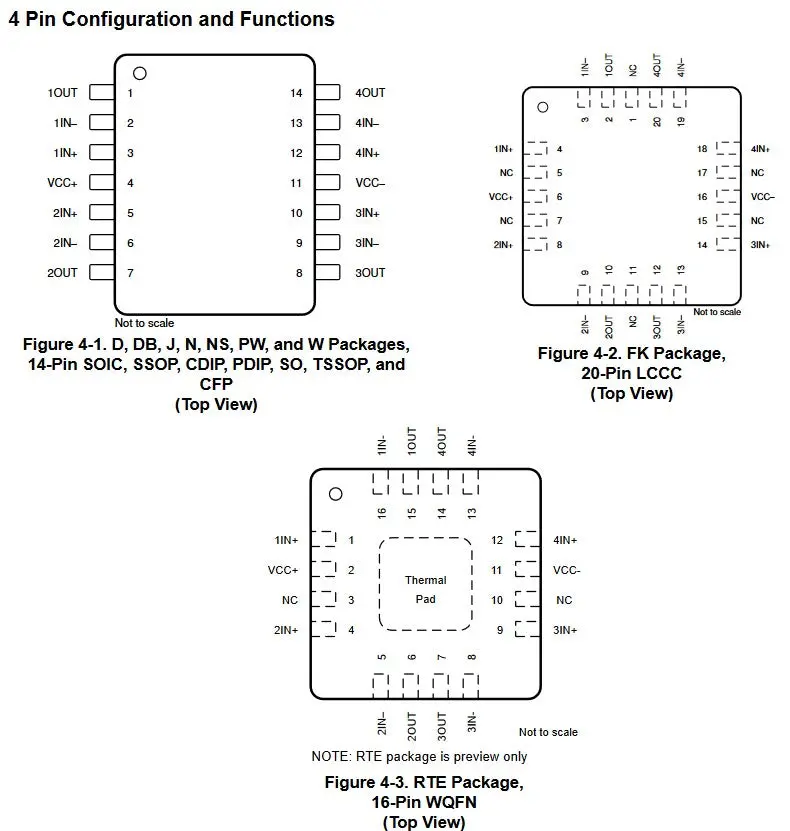

• Package / Case: 14-DIP (0.300″, 7.62mm)
• Supplier Device Package: 14-PDIP
