Linear Actuator Assembly with Integrated NEMA17 Stepper Motor for CNC Applications

Description

SPECIFICATION

• Effective Travel Length: 100mm (300mm)
• Total length: 258mm (458mm)
• Type: linear system module
• Balls crew type: sfu1605 (diameter: 16mm, pitch of screw: 5mm)
• Level balls crew: c7
• Stepper motor: 42mm stepper motor
• Step angle: 1.8 degree
• Torque: 0.45N.M
• Motor size: 42*47mm
• Horizontal load: <20KG
• Vertical load: <10KG
• Speed: 0-50mm/s
• Repeat positioning accuracy of ± 0.03mm

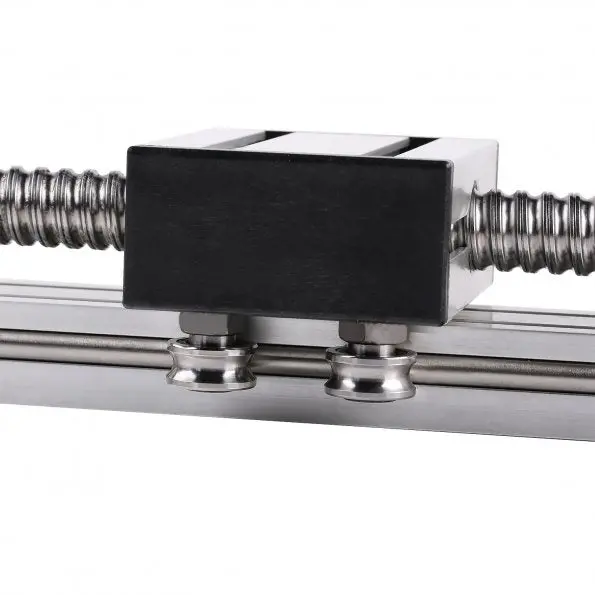

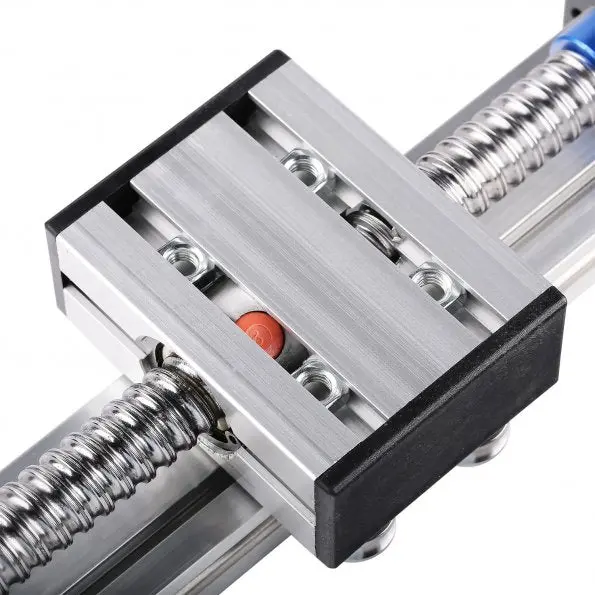

There are 4 M6 nuts on the moving block to fix the workpiece, suitable for 42/57mm stepping motor

Wiring:

• Red: A+
• Blue: A-
• Black: B+
• Green: B-

WHAT’S IN THE PACKAGE

• 1x SFU1605 Linear Guide Rail with Nema17 Stepper Motor
