Jinsoku LE-1620 Portable Laser Engraver – 5.5W Single-Arm, Open-Box Unit

Description

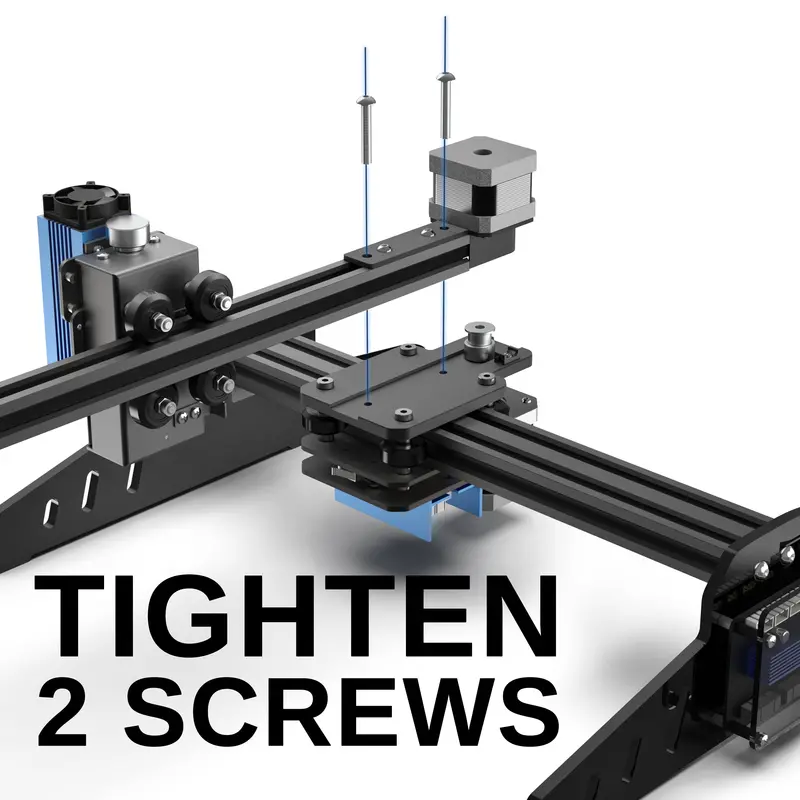

Super Easy Assembly

From unboxing to your first engraving in only a few min-utes. You only need to tighten two screws and do the wiring. The Installation Guide will take you through the process step by step.

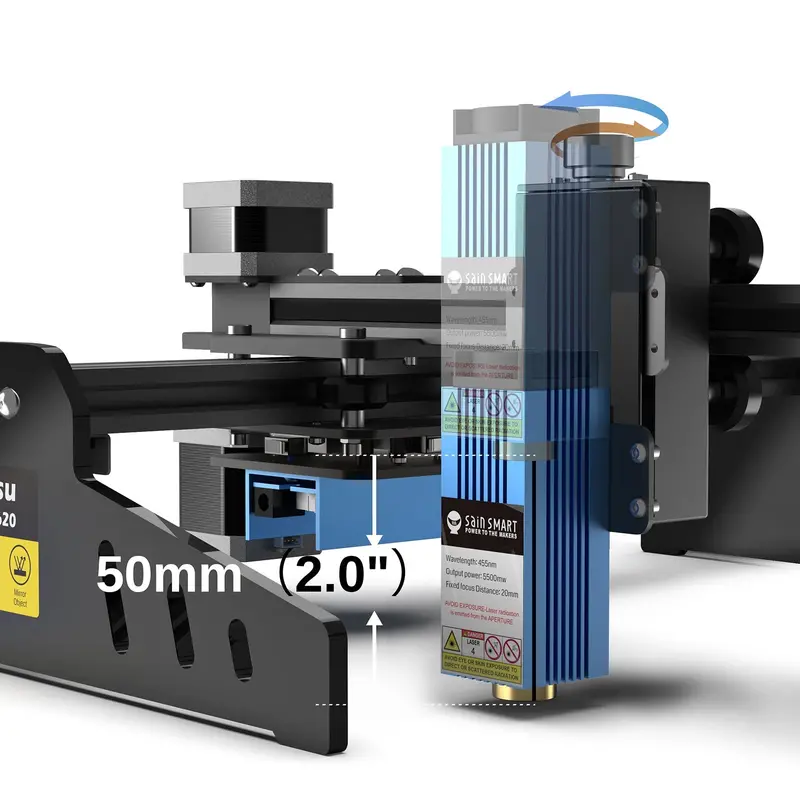

Height Adjustable Z-axis

You can easily adjust the height of the laser to fit in materials of different heights and thicknesses.

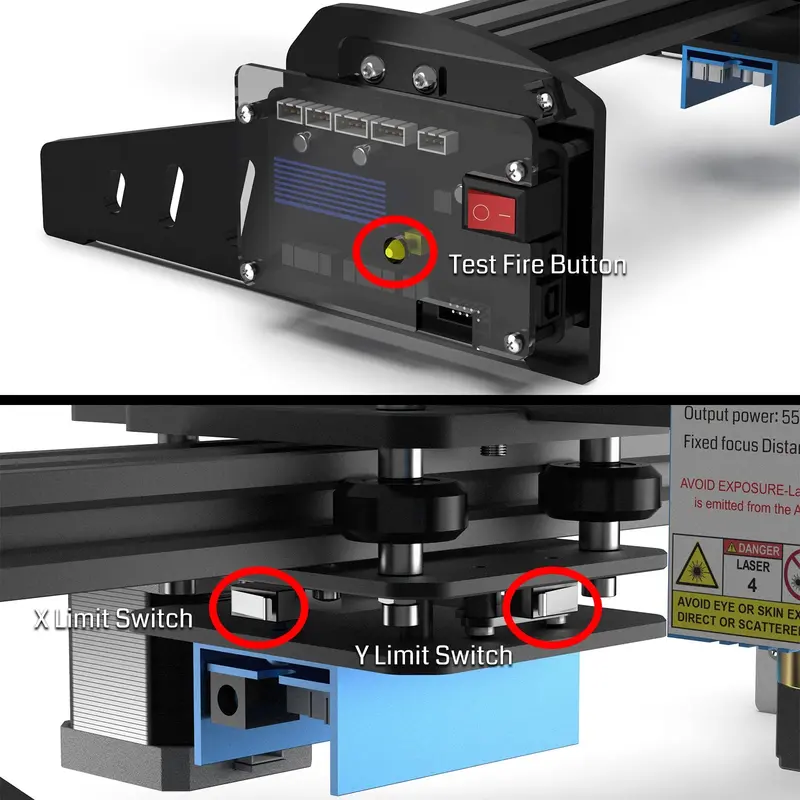

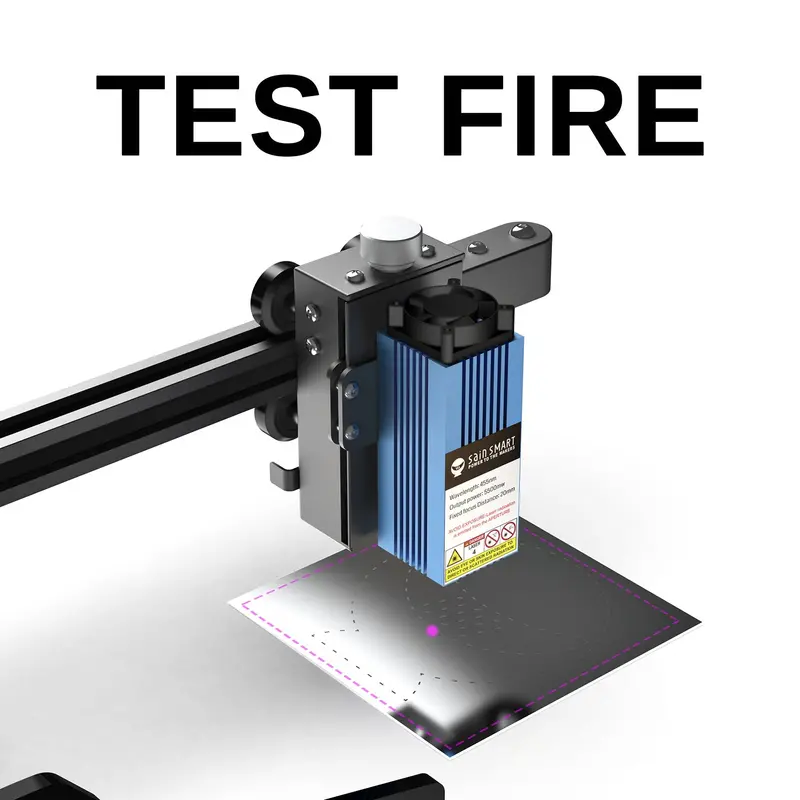

Test Fire Design

Get the most out of your stock material by accurately tracing your work area before you start your engraving/cut.

1. Press the button to test fire.

2. Long Press the button to return XY to zero.

3. Press it to pre-run the engraving area (avoid engraving beyond the engraving material). Press it again to turn it off.

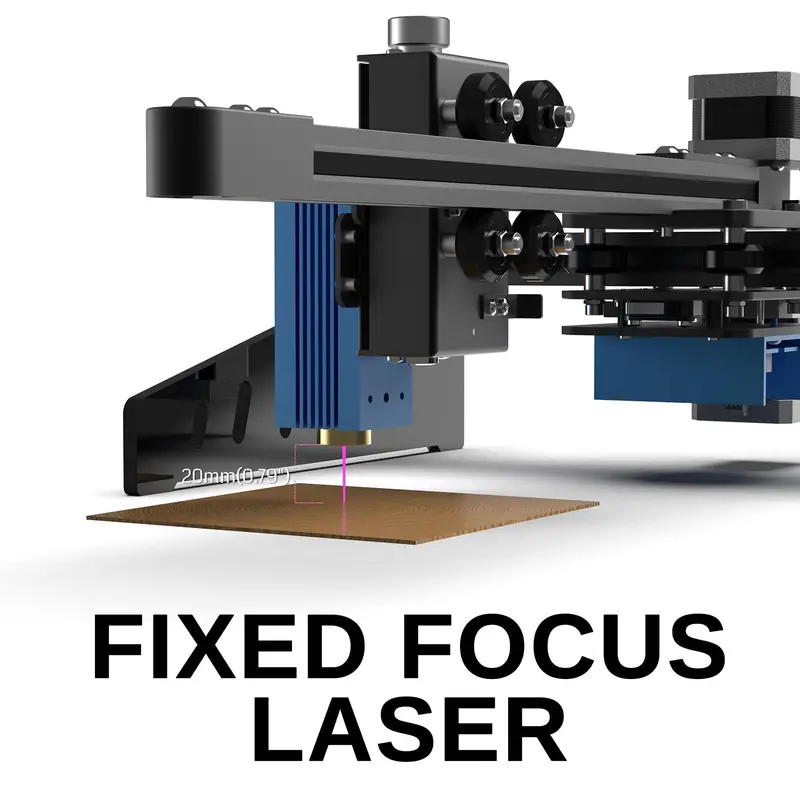

Powerful Laser Module

With 5500MW optical power, 20W input power, the fixed focus laser can not only prolong the service life of the laser head but also achieve maximum power. The drive and laser head are in-stalled sep-arately which reduces the weight of the single arm laser when engraving, making it more stable and easier to replace.

Applicable Materials

Bamboo

Ceramics

Dark Glass

Stainless Steel

MDF

Leather

Aluminum Alloy

Wood

Specification

• Focal length of laser module:

  20mm

• Adjustable height of laser:

  50mm

• Working area:

  200mm (Y) x 160mm(X)

• Software:

  GRBL firmware, compatible with Lightburn/laserGRBL etc.

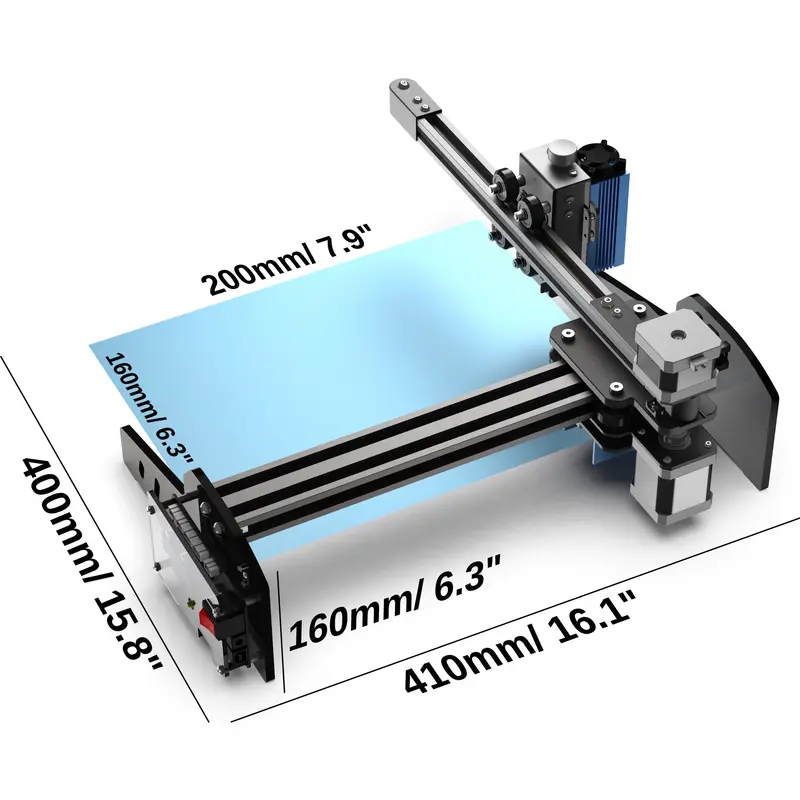

• Dimension after installation:

  410mm x 400mm x 160mm

• Supported OS:

  Windows XP, 7, 8, 10, Mac OS, and Linux

• Note:

  Before engraving with aluminum, please use a marker pen to blacken the metal surface to be engraved.
  Quick Start Guide User Manual

•

Which Laser Machine is right for you?

LE5040

SHOP NOW

---

500 x 400mm

19.7 x 15.7in

Working Area

5.5W Fixed Focus

Laser Power

–

Z-Axis Height

Goggles

Safety

–

Air-Assit

–

Test Fire

–

Auto Home

–

Limit Switch

Jinsoku LE-1620

SHOP NOW

---

200 x 160mm

7.9 x 6.3in

Working Area

5.5W Fixed Focus

Laser Power

50mm Adjustable

Z-Axis Height

Goggles

Safety

–

Air-Assit

Yes

Test Fire

Yes

Auto Home

Yes

Limit Switch

Jinsoku LC-60A ^NEW

SHOP NOW

---

600 x 600mm

23.6 x 23.6in

Working Area

5.5W Fixed Focus

Laser Power

50mm Adjustable
(Leg Extended 135mm)

Z-Axis Height

Laser Shield & Goggles

Safety

Yes

Air-Assit

Yes

Test Fire

Yes

Auto Home

–

Limit Switch
