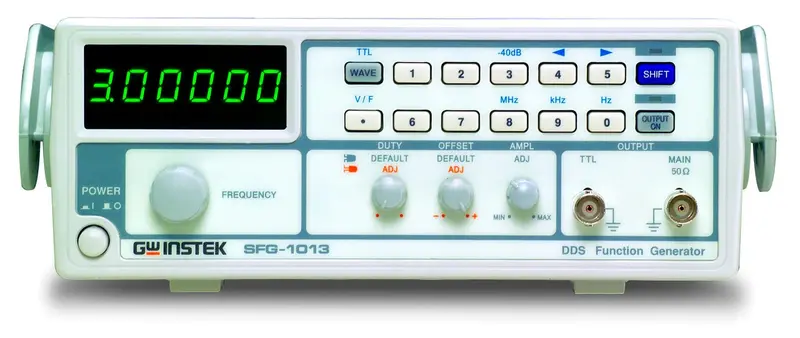

GW Instek SFG-1013 DDS Function Generator — 0.1Hz–3MHz, 6-Digit LED Display with Voltage Output

Description

The SFG-1000 Series, an economic function generator with high accuracy and high stability output, are designed based on the DDS (Direct Digital Synthesized) technology embedded in a large scale FPGA.
The 3MHz frequency range and the output waveform selection of Sine, Square, Triangle and TTL available in the SFG-1000 Series adequately provide the fundamental functions to ensure high confidence in test results. The DDS technology at an affordable price gives a high value solution to the users who need a signal source for accurate but simple measurement applications
Features:
• DDS Technology and FPGA Design
• Frequency Range : 0.1Hz ~ 3MHz
• High Frequency Accuracy : 20ppm
• High Frequency Stability : 20ppm
• Max. Frequency Resolution : 100 mHz
• Low Distortion Sine Wave : -55dBc, 0. 1Hz~200 kHz
• Voltage Display
