GRBL-Compatible Controller Board for Genmitsu CNC Routers: 3018, 3018-PRO, and 1810-PRO Models

Description

FEATURE

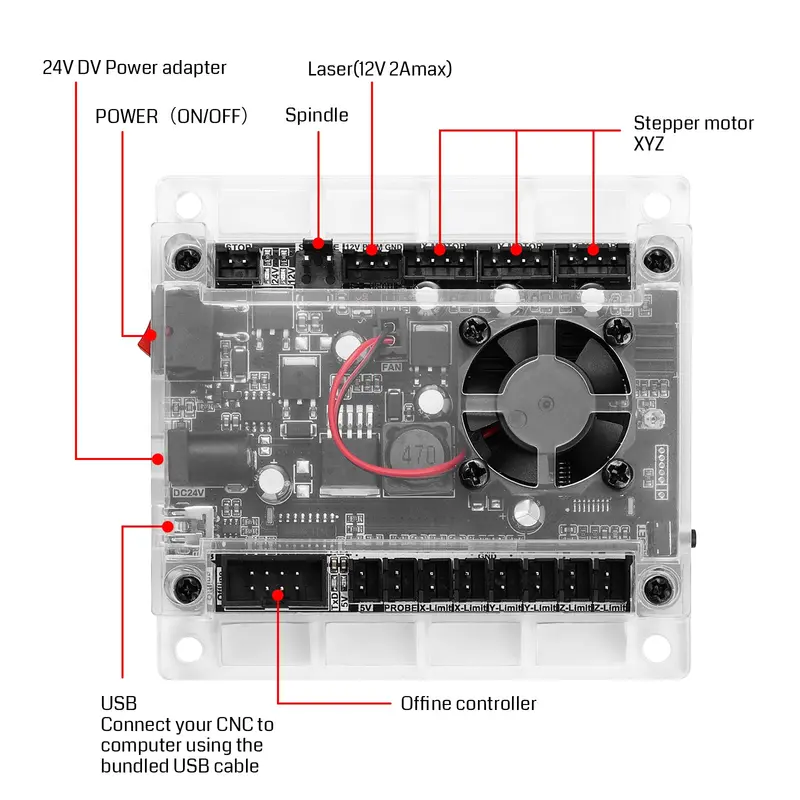

• Support Laser engraving.
• Support spindle PWM speed control.
• Support XYZ triaxial control, spindle, laser head.
• Spindle drive chip 1: MOSFET (recommended input voltage within 12-24V, current 10A).Can be connected to high-power spindle motor or the laser head.
• Spindle drive chip 2: MOSFET (current maximum 2A !!).Can only be connected within the 2A head of the laser, the voltage 0-12V can be adjustable.

WHAT’S IN THE PACKAGE

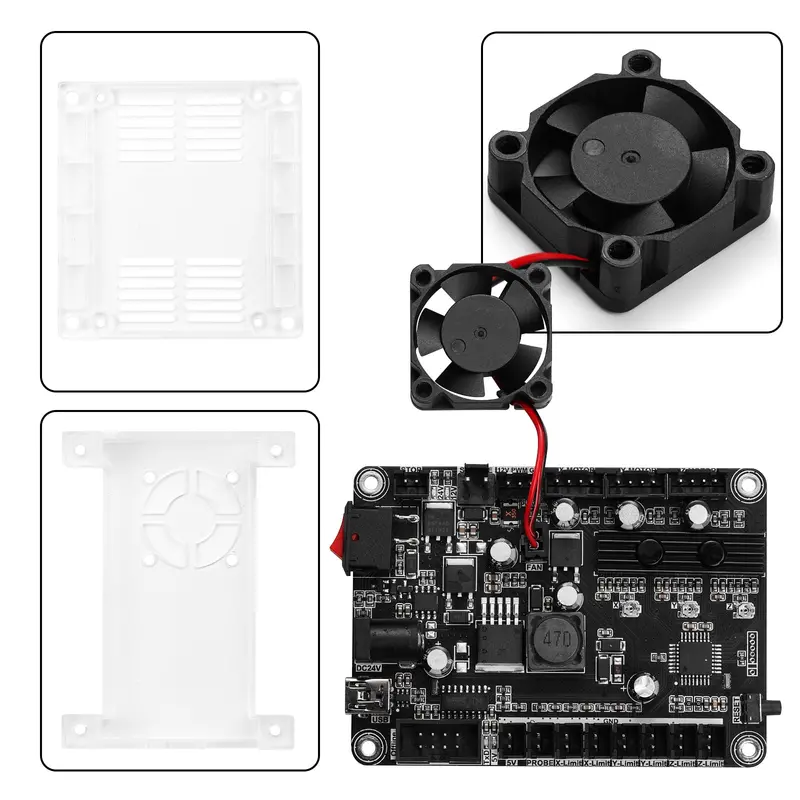

• 1 x Controller Board
• 1 x USB line
