GME FG-2020 Portable DDS Signal Generator — Dual-Channel, 20MHz, High-Precision Handheld Function Generator

Description

• 【ADVANCED DDS TECHNOLOGY】 20MHz output frequency and 5V peak-to-peak amplitude, DDS technology with microprocessor control for clean and accurate waveform
• 【DUAL CHANNEL OUTPUT】 Two BNC outputs for simultaneous square waveform and sine/triangle waveform output; Large 8-digit LCD frequency display
• 【EASY TO USE, VERSATILE DESIGN】 Standard 9V battery or AC power adapter (included) operation with low battery indicator; Numerical keypad for simple and accurate frequency setting; Built-in flash memory store/recall up to 50 setup parameters

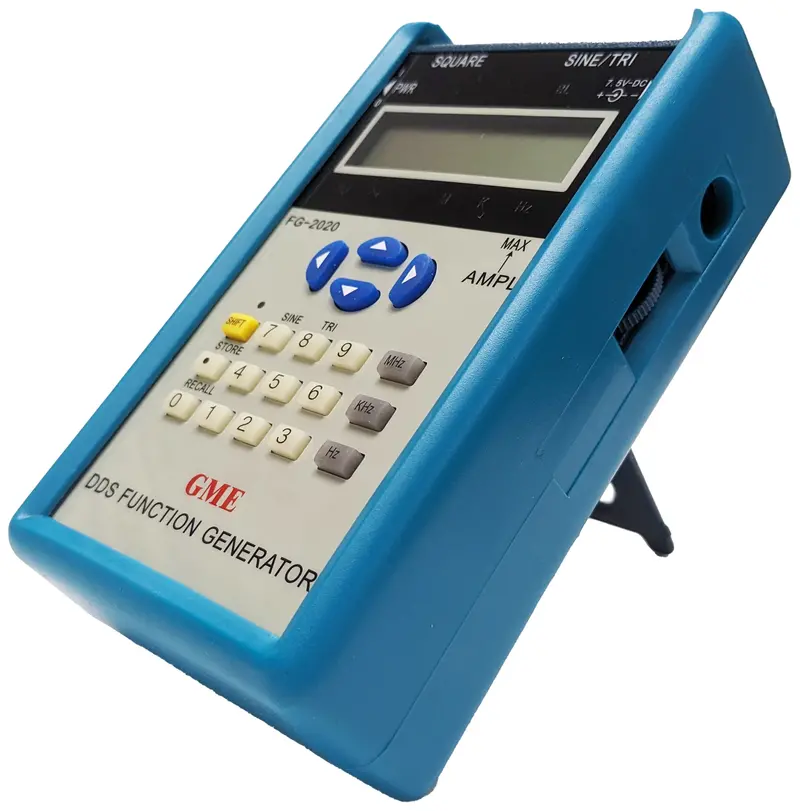

• 【PORTABLE AND RUGGED DESIGN】 Handheld lightweight design ideal for on-the -bench and in-the-field testing, housed in protective impact resistant rubber holster with tilt-stand

The FG-2020 function generator utilize advance Direct Digital Synthesis (DDS) technology to create highly accurate and stable output signals including sine, square, and triangle waveforms up to 20MHz with 5V peak-to-peak amplitude in a portable hand-held unit.
Features:
– Up to 20MHz output frequency and 5V peak-to-peak amplitude
– DDS technology with microprocessor control for clean and accurate waveform
– Multiple output waveforms include sine, triangle, and square wave
– Numerical keypad for simple and accurate frequency setting up to 0.2Hz step
– 8-digit LCD frequency display
– Two BNC outputs for simultaneous square waveform and sine/triangle waveform output
– Built-in flash memory for store/recall of up to 50 setup parameters
– Low battery indicator
– Standard 9V battery or 7.5V AC adapter operation
– Easy to use, lightweight, and portable
Technical Specifications:
– Waveforms: Sine, Triangle, Square
– Range: Sine/ Square waveform: DC to 20MHz
– Triangle waveform: DC to 2MHz
– Frequency Resolution:
0.2 Hz steps (under 10MHz)
1 Hz steps (10MHz to 20 MHz)
– Crystal accuracy: +/- 30ppm
– Two BNC outputs :
1) Sine/Triangle wave: 5Vp-p (no load) with variable amplitude control
2) Square wave: Fixed 5Vp-p
– Output impedance: 50 ohm
– Store/Recall Memory Size: Store/Recall 50 setup parameters (both frequency value and waveform type)
– Power: Standard 9V battery or external 7.5V AC power adapter (included)
– Dimensions: 5.7”(H) x 3.8”(W) x 1.5”(D)

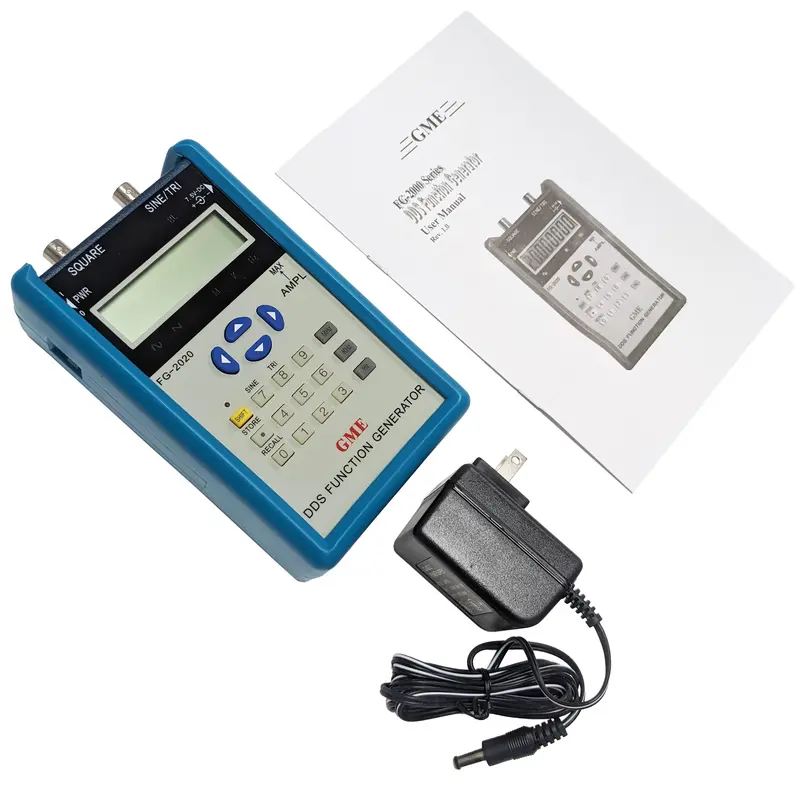

Package Contents:
– One (1) – FG-2020 DDS Function Generator
– One (1) – Protective Rubber Holster
– One (1) – 7.5V AC power adapter
– One (1) – User Manual
