Description

Load your projects without Computer

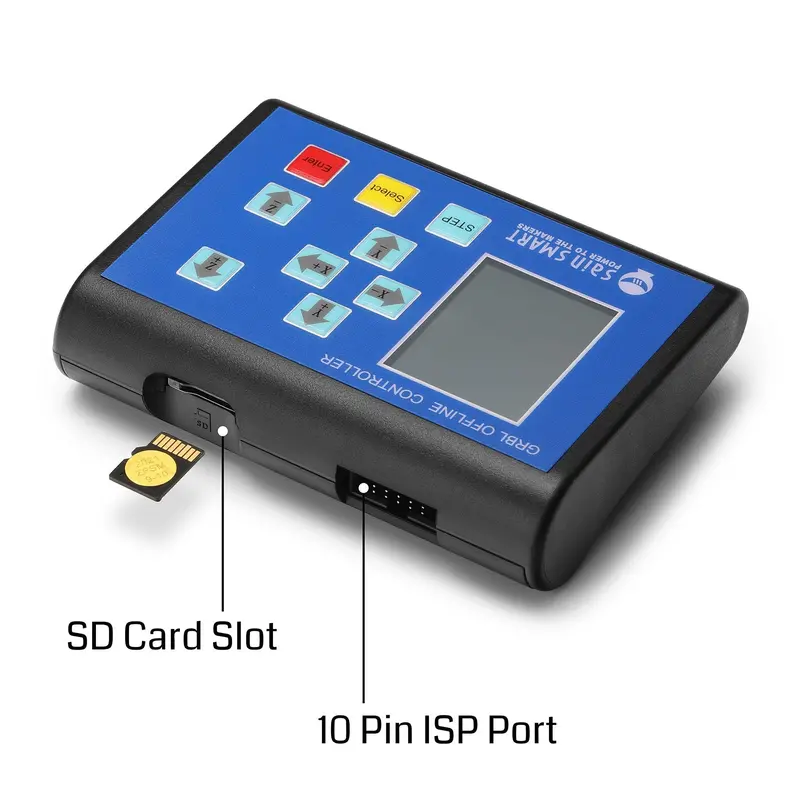

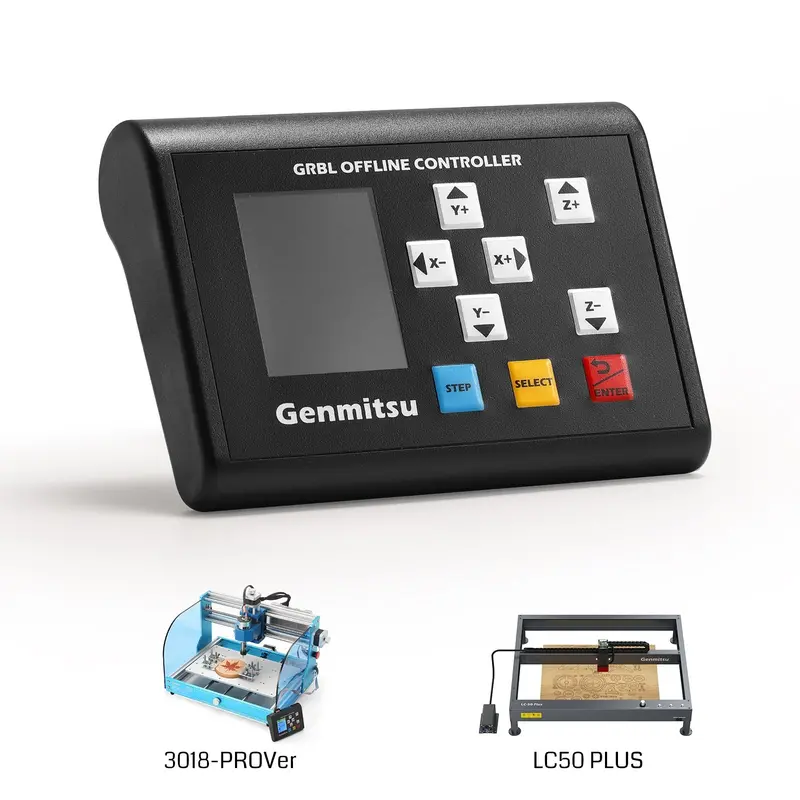

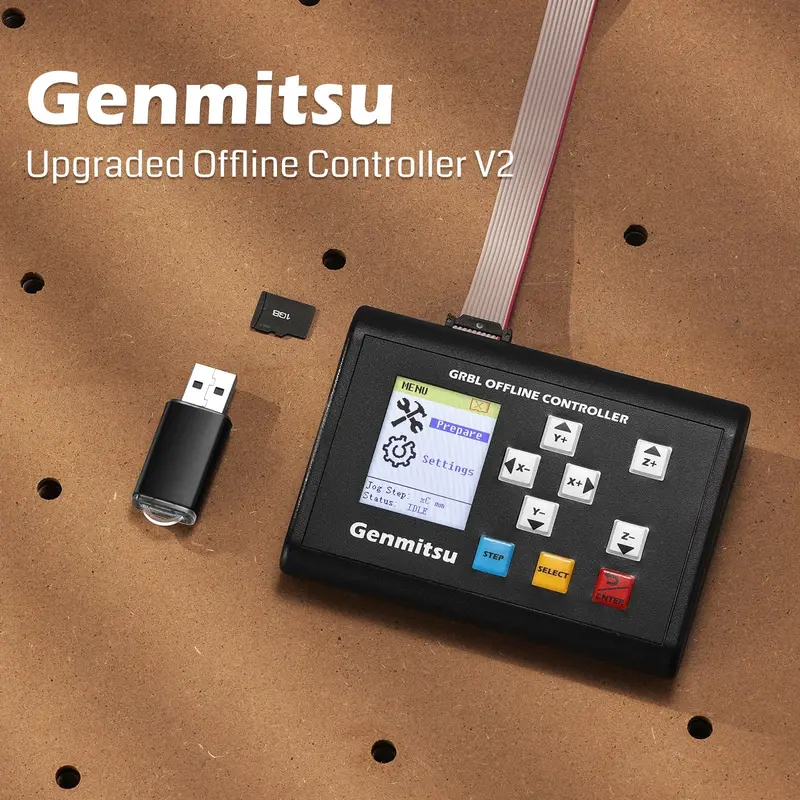

With the Genmitsu offline controller module, you can control the CNC router or Laser Engraving Machine without connecting to a computer. Easily load your projects onto the included SD card and have them ready to go without the need of a dedicated laptop or computer

Easier Operation

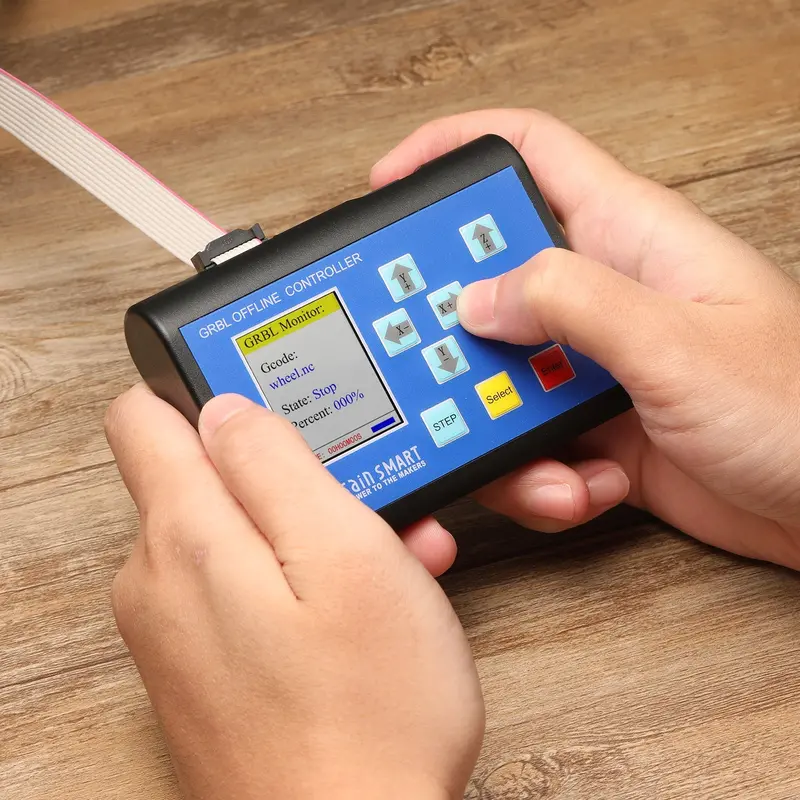

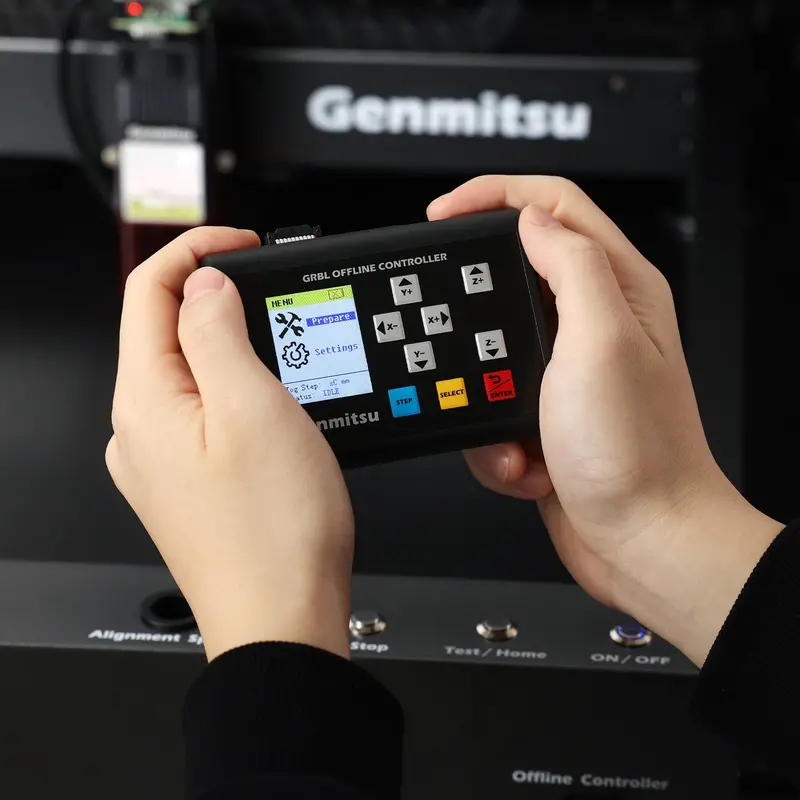

The upgraded offline controller can jog each axis continuously with a long press of the button. You now don’t need to move the axis with small fixed increments by pressing the button repeatedly. It makes the operation easier and saves you time.

Error Fixed Easily

Equipped to diagnose 3 types of ERR and 9 types of ALARM error prompt messages. You can find the problem easily and continue your project quickly with these prompt messages.

More Info

Functions:

• Control X, Y, Z-axis moving
• Control spindle on/off
• Adjust spindle speed, step
• Gcode Running

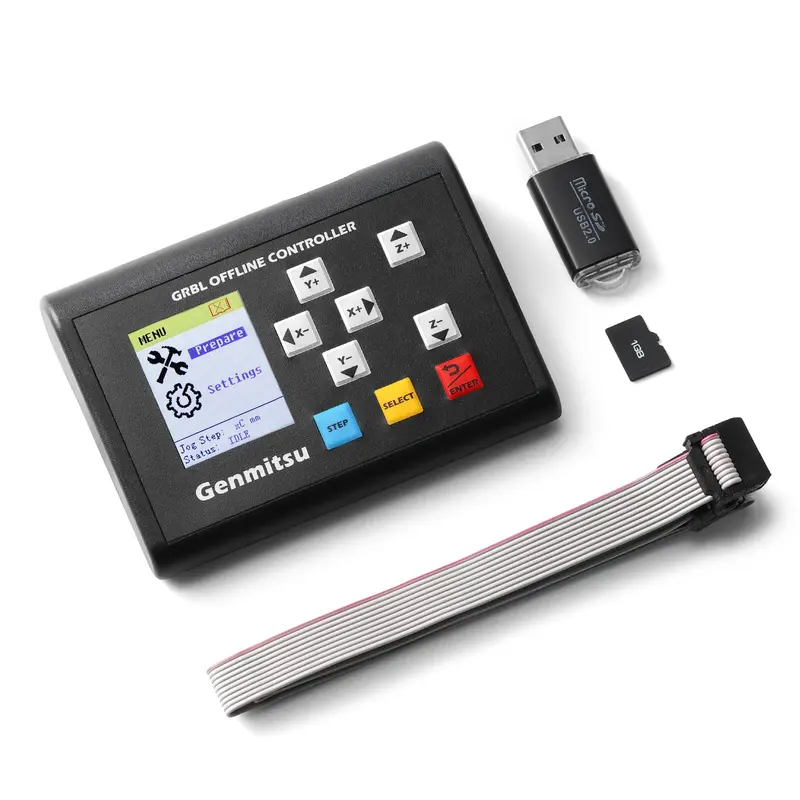

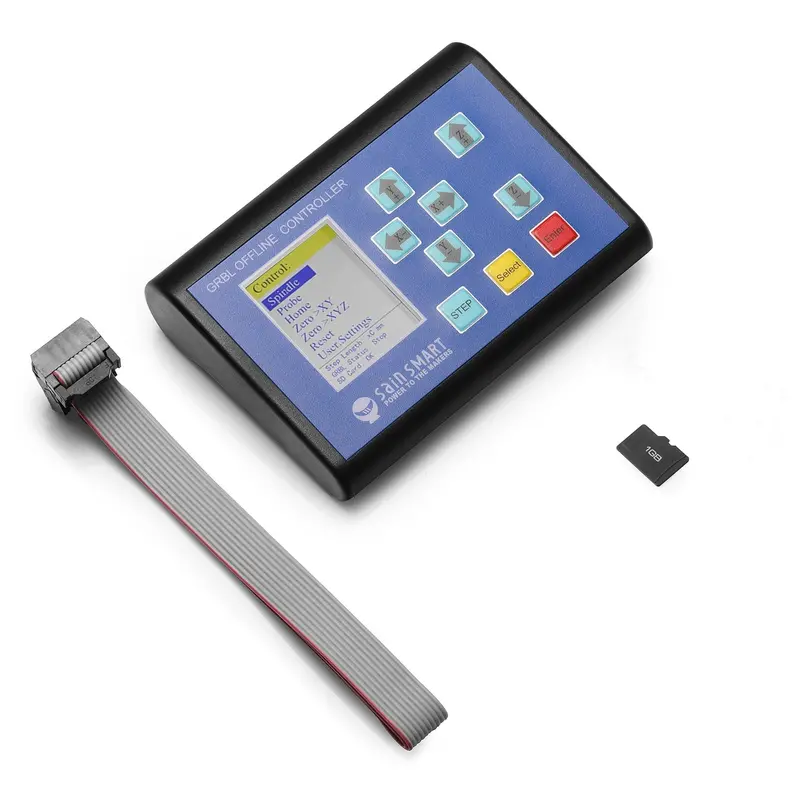

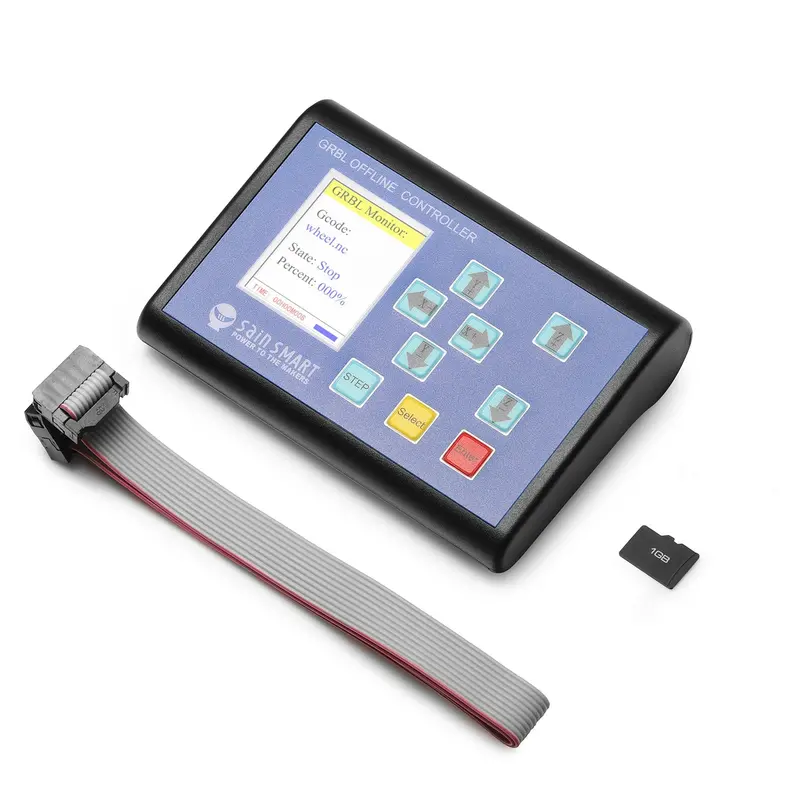

Package List:

• 1 x Offline Controller

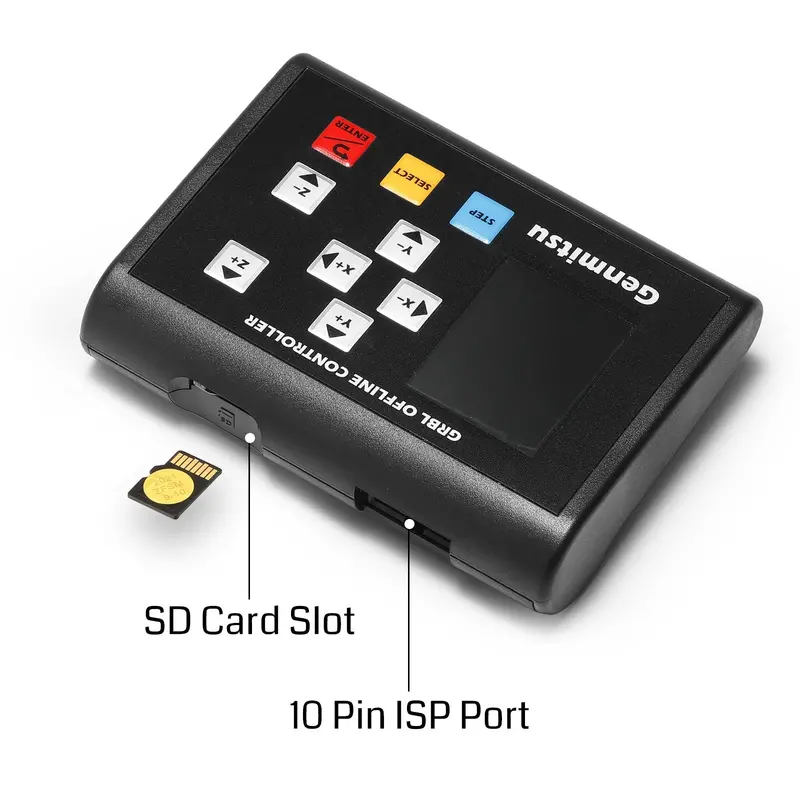

• 1 x 10 PIN ISP Cable
• 1 x SD Card

ERROR and ALARM Code List (Using a controller Read)

• ERROR 1: Height of tool lifting invalid
• ERROR 2: Control board unresponsive
• ERROR 3: Gcode failed to run
• ALARM 1: Hardware limit triggered
• ALARM 2: Software limit triggered
• ALARM 3: Forced exit while running
• ALARM 4: Tool setting initialization failed
• ALARM 5: Tool setting failed
• ALARM 6: RESET is triggered on the way back to the origin
• ALARM 7: DOOR is triggered on the way back to the origin
• ALARM 8: Check weather limit switches opened
• ALARM 9: Check whether limit switches can be triggered
