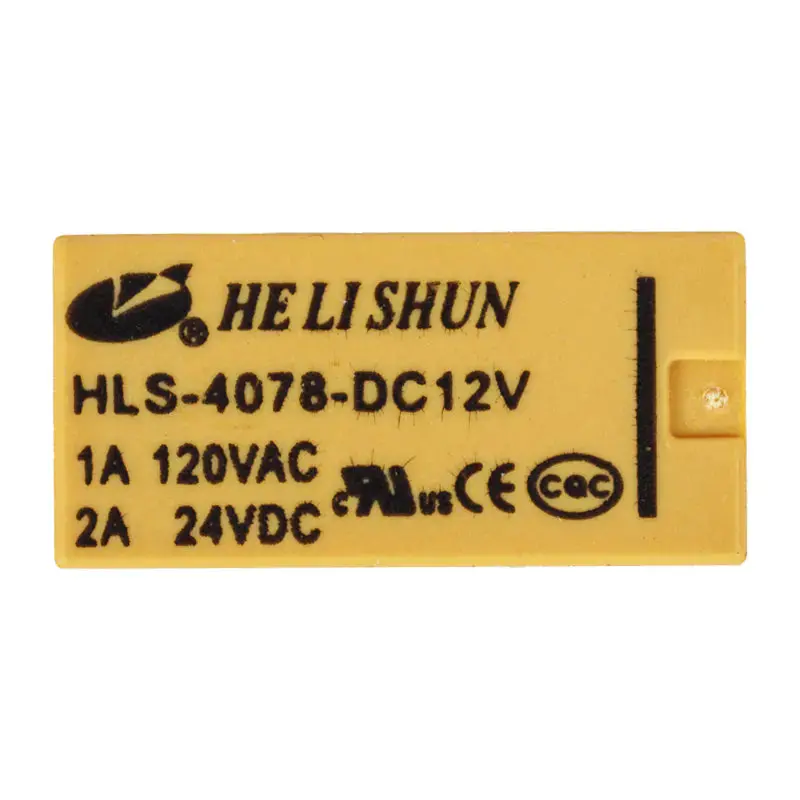

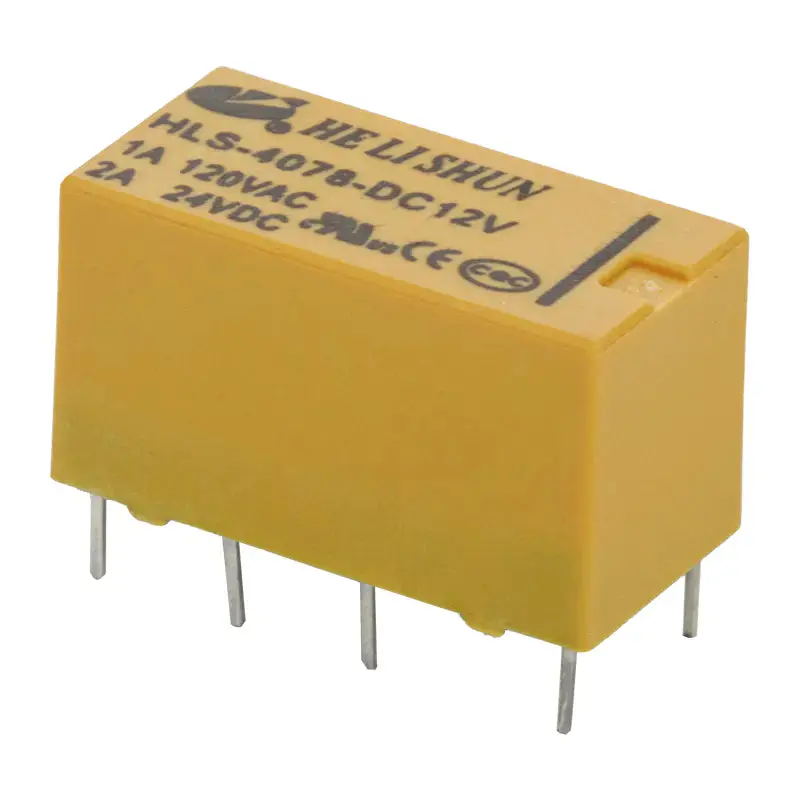

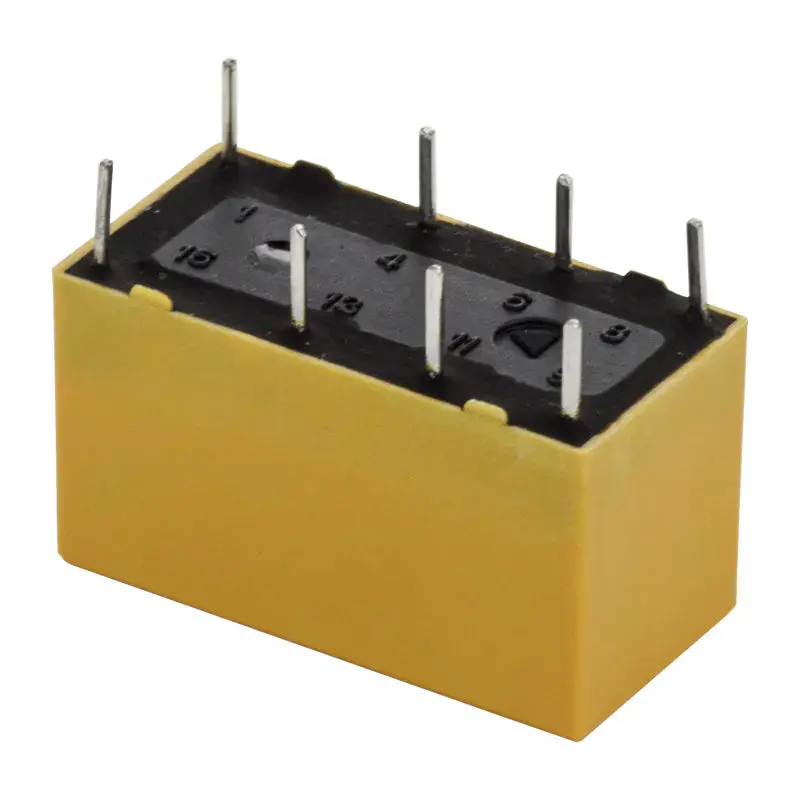

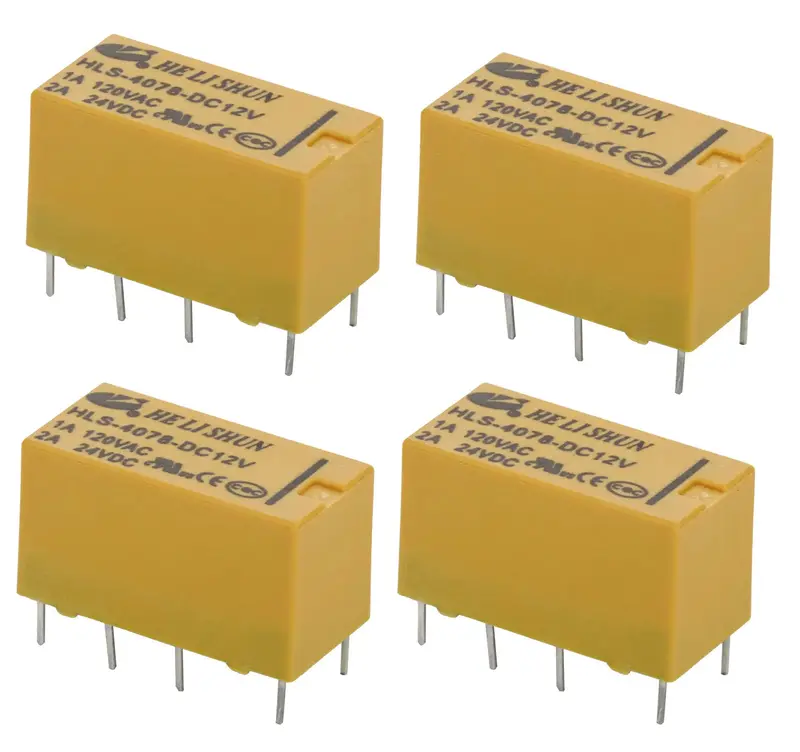

Four 12V DPDT Relay Modules (HLS-4078-DC12V) – 2A Load Capacity, DIP Format

Description

Features:

• 4 Pack 12V Relay DIP
• Suitable for handling low signals in computer peripherals, telecommunications and security equipment
• Standard DIP Package
• Coil arrangement : 2 FORM C (DPDT)
• Capable of Switching Loads up to 2A
• Nominal Coil Voltage: 12V, Tolerance: ±20%

Contact Data:

• Contact Form: 2C
• Contact Material: Ag+Au
• Contact Ratings: 1A 120VAC; 2A/24VDC
• Max Switching Voltage: 240VAC/60VDC
• Max Switching Current: 2A
• Max Switching Power: 120VA/30W
• Initial Contact Resistance: 50m Ω Max at 6VDC 1A
• Life Expectancy Electrical: 100,000 Operations(rated load)
• Life Expectancy Mechanical: 10,000,000 Operations(no load)

General Data:

• Insulation Resistance: 100M Ω Min at500VDC
• Dielectric Strength Between Open Contacts: 500VAC 50-60HZ( 1 minute)
• Dielectric Strength Between Contacts And Coil: 1000VAC 50-60HZ( 1 minute)
• Operate Time: 6ms max
• Release Time: 4ms max
• Ambient Temperature: -30 ℃ to+70 ℃
• Shock Resistance:
• Malfunction: 10G
• Destruction: 15G
• Vibration Resistance: 10-55Hz,1.5mm double amplitude
• Ambient humidity: 40-85% RH
• Weight: Approx 5g
• Safety Standard: UL CE CQC
