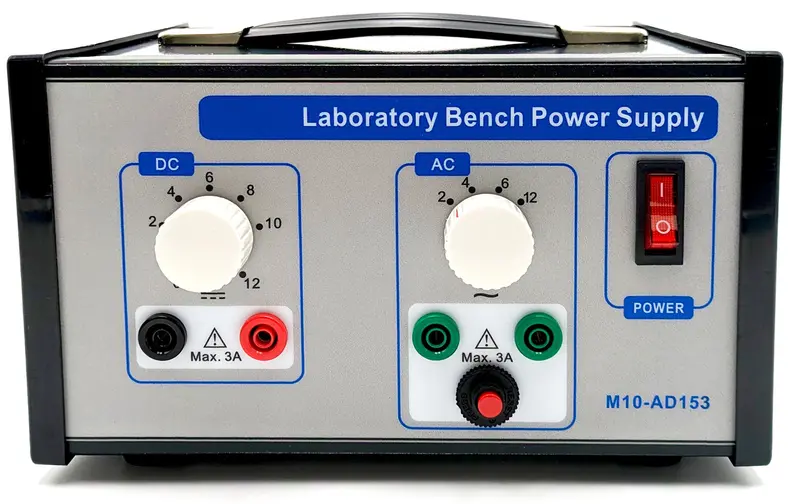

Dual-Mode Lab Power Supply – Adjustable DC (0–12V) & Multi-Tap AC (2/4/6/12V), 3A Max (M10-AD153)

Description

• Continuously adjustable regulated DC output voltage: 0~12V, 3A
• Selectable AC output voltage: 2V, 4V, 6V, 12V, 3A output
• DC electronical current protection, AC circuit breaker protection
• Load regulation: 750mV, Line regulation: 20mV, Ripple & noise: 15mV
• Input Voltage: 110~127±10%, 60Hz

Features:

• Both AC and regulated DC output
• DC continuously adjustable
• DC electronical current protection
• AC selectable output voltage
• AC circuit breaker protection

Full Specifications:

• DC Output voltage: 0~12V
• DC Output current: 3A
• Load regulation: 750mV
• Line regulation: 20mV
• Ripple & noise: 15mV
• AC Output voltage: 2V, 4V, 6V, 12V
• AC Output current: 3A
• Input voltage: 110~127±10%, 60Hz
• Dimensions (W x H x D): 220mm x 133mm x 193mm
• Weight: 3kg (6.62 lbs)

Includes:

• Power Supply
• Power Cord
• User’s Manual
• 2 Spare Fuses
