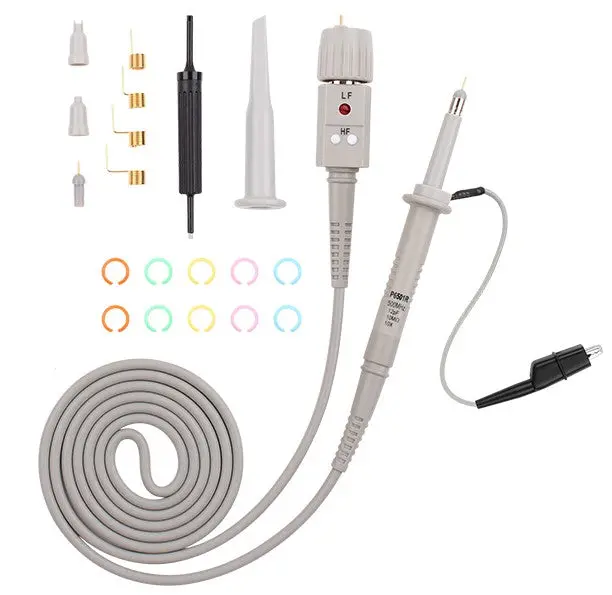

500 MHz Passive Oscilloscope Probe — Fixed 10× Attenuation, Tektronix & Keysight Compatible

Description

•Fixed x10 attenuation with readout actuator pin
•Rise time: 0.7 ns (500 MHz)
•Compensation range: 8~20 pf
•Cable length: 1.2 meter
•Tektronix and Agilent compatible

The P6501R is a passive high impedance oscilloscope probe designed and calibrated for use with instruments having an input impedance of 1 MΩ shunted by 13pF; however, it may be compensated for use with instruments having an input capacitance of 8 to 20pF. It is also compatible with readout function oscilloscopes that automatically detect probe attenuation and adjust the scale readout accordingly.
Included accessories:

• Channel Identifier Clips (5 colors, 2 of each color)
• Spring Hook
• Ground Lead
• Insulating Tip
• IC Tip
• Trimmer Tool
• Measuring Tip
• Probe Tip Ground
• BNC Adapter
