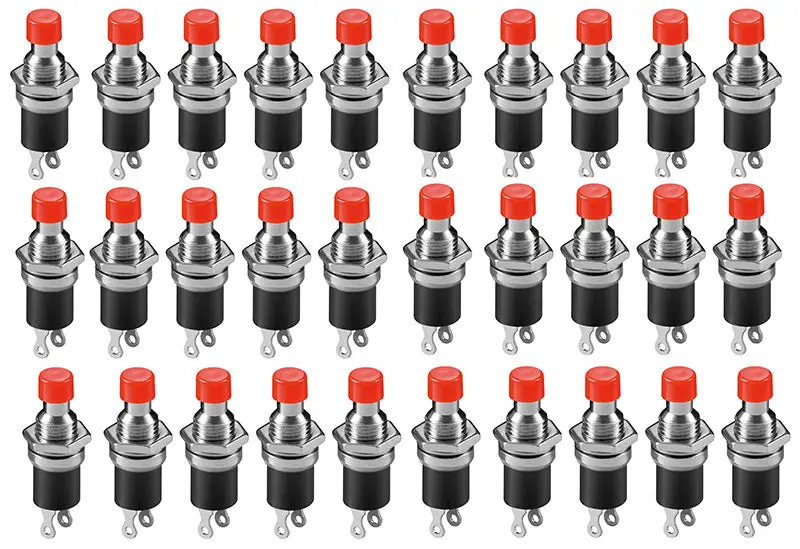

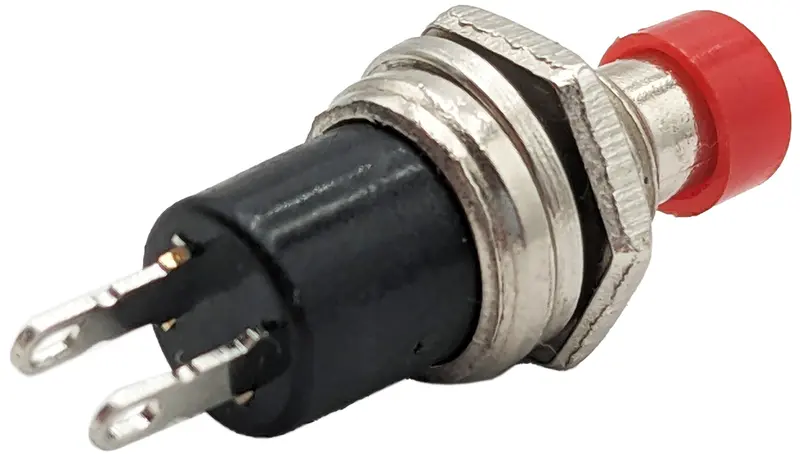

30-Pack Normally Open Momentary Pushbutton Switch – Red Round Actuator, 2-Pin Solder Lug

Description

• 30 Pack Momentary Switch with Round Red Button

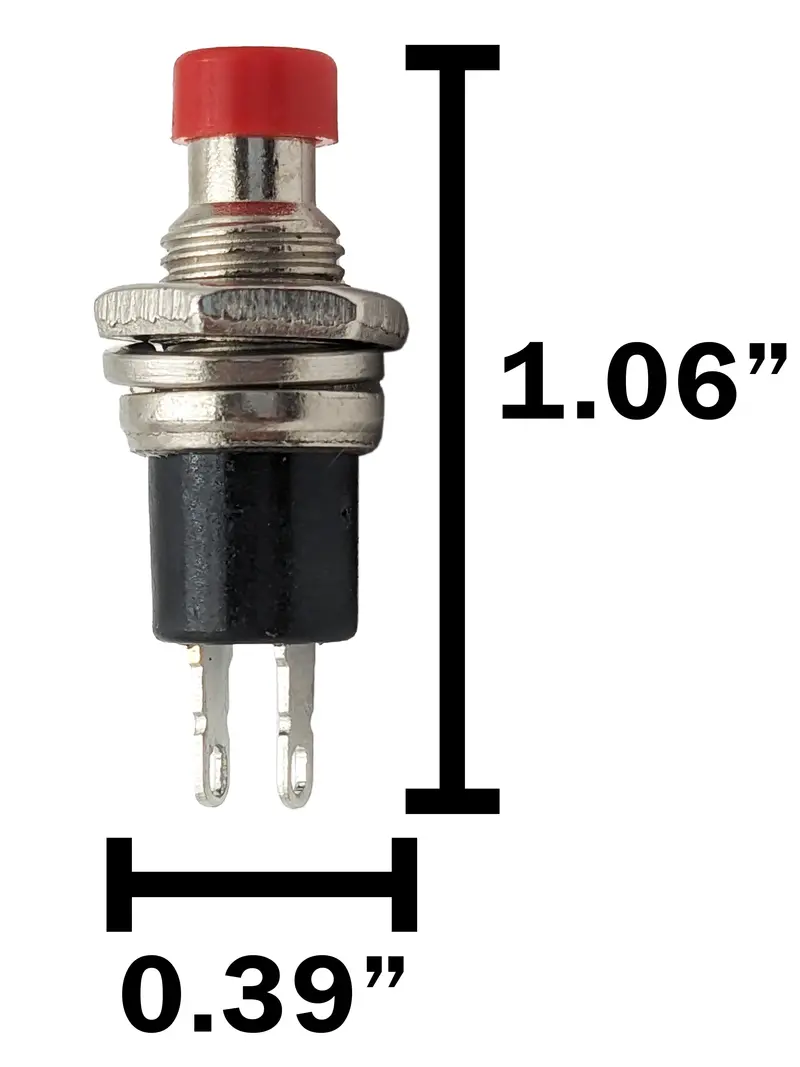

• Overall size: 0.39″ wide, 1.06″ tall, Button diameter: 0.24″

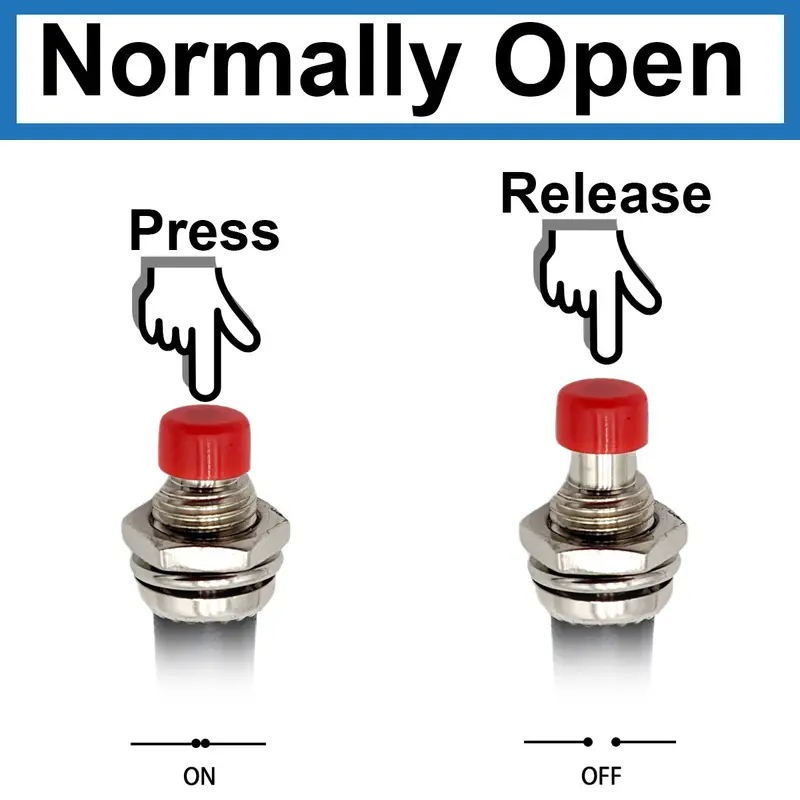

• Normally Open
• Number of pins: 2
• Mounting: Panel Mount, fits 0.26″ cutout
• Termination: Solderable Lug

Specifications:

• Rating: 1A 125VAC
• Contact Resistance: 30mΩ max.
• Insulation Resistance: DC 500V 100 MΩ min.
• Dielectric Strength: AC 1000V 1 minute
• Electrical Life: 30,000 cycles min
• Mechanical Life: 50,000 cycles min
• Terminal Material: Copper alloy, silver or gold plated
