3-Channel 5V Low-Level Trigger Relay Module for Arduino, PIC, ARM & Other Microcontrollers

Description

This is a 3 Pack of 5V 2-Channel Relay interface board. It cab be used to control various appliances and other equipment with large current. It can be controlled directly by Micro-controller (Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

Specifications:

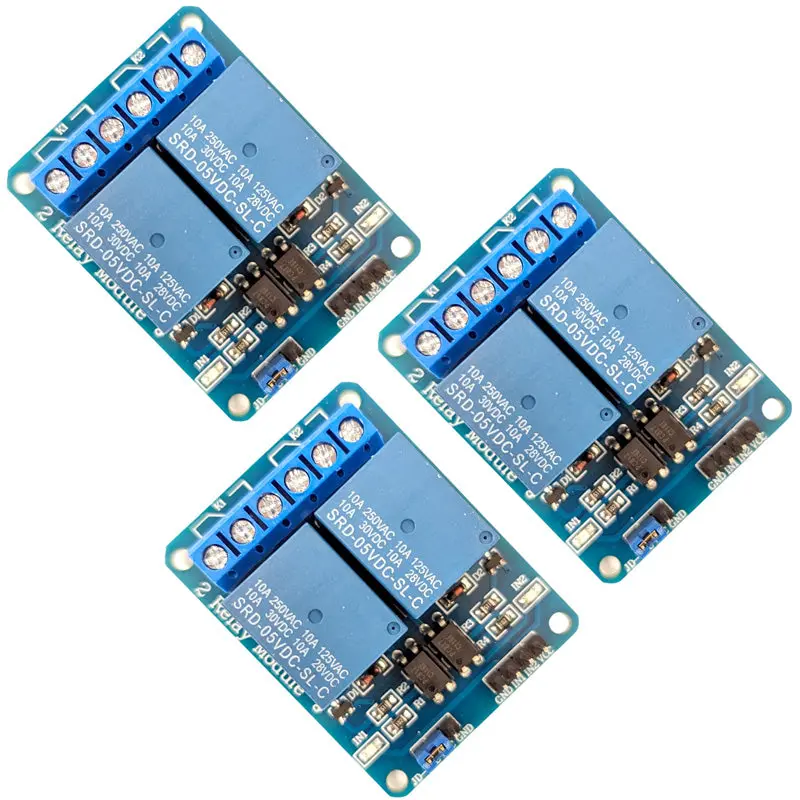

• Pack of 3

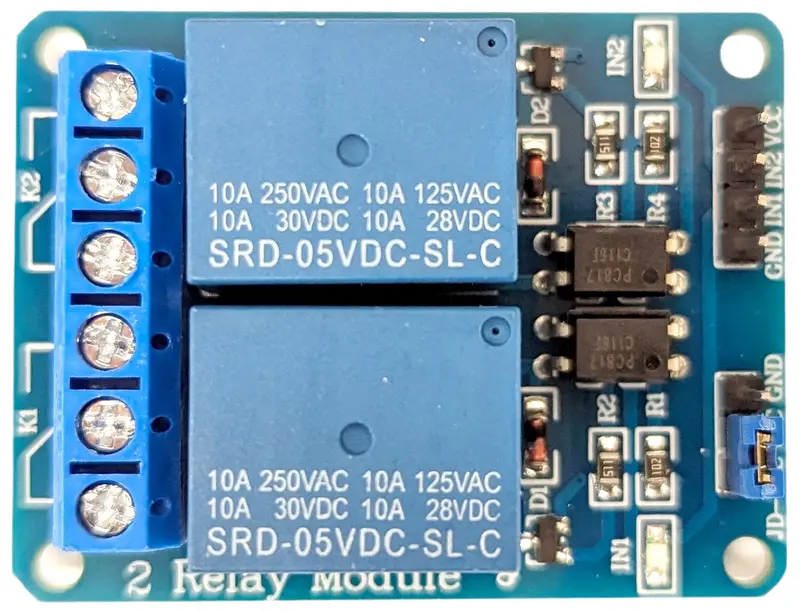

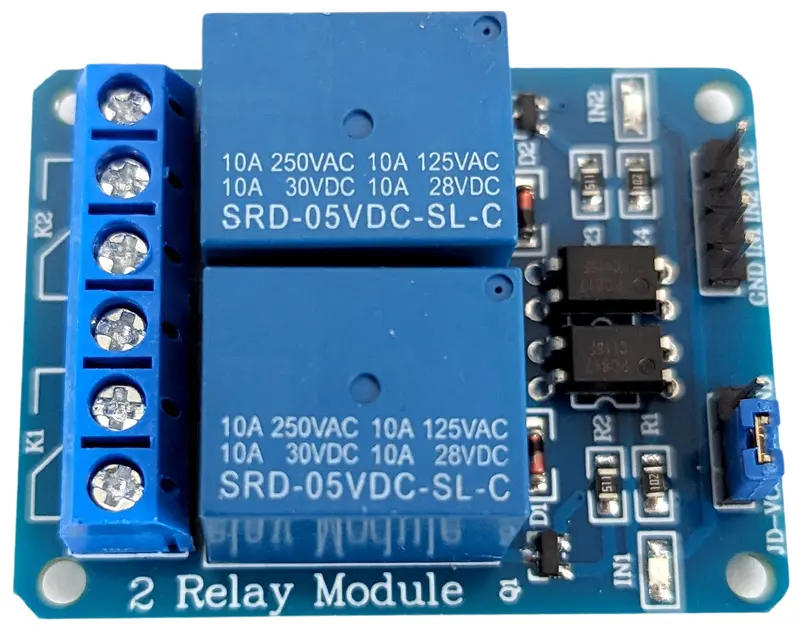

• 5V, 2 Channel Relay Interface Board
• Equipped with high current relay
• AC250V 10A ; DC30V 10A
• Standard interface that can be controlled directly by micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
• Indication LED’s for Relay output status
• It activates on low level
• There are 4 fixing screw holes around the board, the hole diameter is 3.1mm, which is convenient for installation and fixing.
• The relay uses high-quality relay, single pole double throw.
• Optocoupler isolation, good anti-interference.
• Low level pull-in, high level release. The status indicator light is on when it is engaged, and it is off when it is released.
• PCB Color: Black
• Weight: 31g

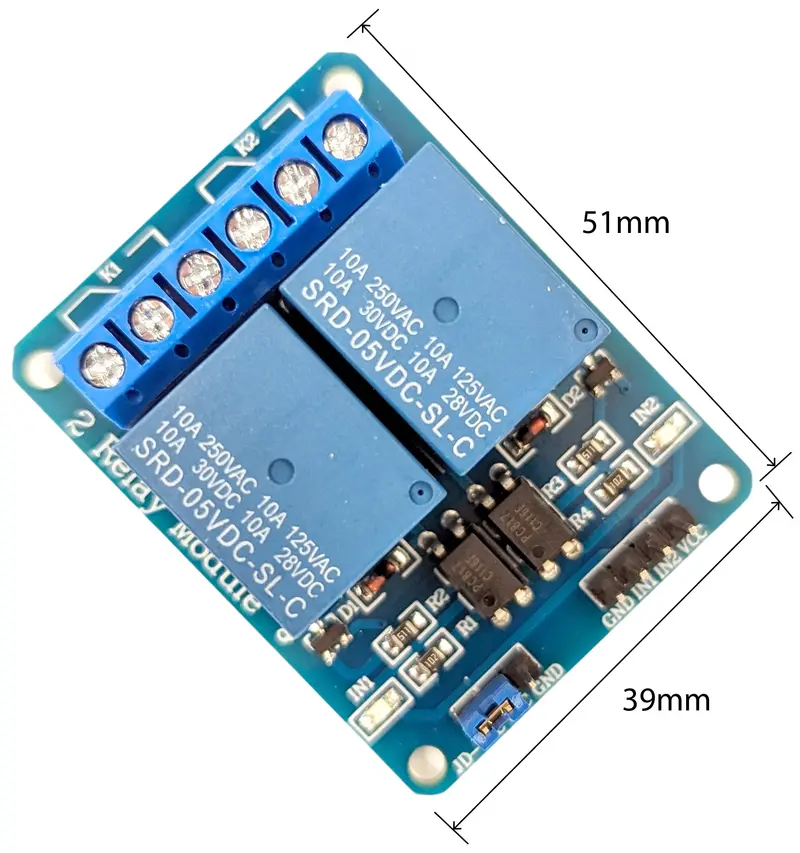

• Dimensions (L x W x H): 51mm x 39mm x 19mm
